Features of THERMALTAKE TR2 S 650

THERMALTAKE TR2 S 650W Power Supply has a non-modular supply of power having ATX form factor. This product has 80 white certifications.

THERMALTAKE Power Supply has SMPS weighs around 1kg and the efficiency rating of PSU is 0.85. This is one of the ideal PC Power Supply as they are features no other power supply has.

The brand Thermaltake has the finest and best coolers and cabinets in the whole country. It gives 3 types of power supply they are – the AT power supply, the ATX power supply and the ATX-2 power supply.

The PSU is fully modular or semi-modular. It also contain a 120mm cooling fan which has intelligent RPM control that gives optimum cooling temperature and is noise free.

This comes with multiple connector cables which are sleeved for prevention and blockage of the airflow. It comes with 7th generation Kaby Lake processor for achieving maximum no. of energy savings.

All the components are of high quality and it enables non-stop usage with stable and reliable performance. This prevents any kind of explosion or leakage. This product has 3 years of manufacturer warranty.

The input voltage is 230V and the Input current is 9A max with 50 Hz – 60 Hz of frequency. The maximum outputs +3.3 V, +5 V, +12V1, +12 V2 and +5Vsb are combined output power does not exceeds 650W.

The dimensions of the power supply is 86 mm x 150 mm x 140 mm with MTBF of 100,000 hours minimum. The storage temperature must be -40 degree C to +55 degree C.

Ultra Quiet 120mm Fan

TR2 S Series adopts a 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

Multiple Connectors

The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in an optimal location to prevent airflow blockage.

80 PLUS 230V Standard Certified and Kaby Lake-Ready

TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.

High-Quality Components

High-quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion, and leakage.

Single 12V Output

TR2 S Series is equipped with powerful 12V rails, superior performance under all types of system loading.

Get the best 80 Plus White smps for pc price from us today!

Specifications of THERMALTAKE TR2 S 650

Model	PS-TRS-0650NPCWEU-2
watts	650W
RGB Fan	No
Form Factor	ATX
Type	Intel ATX 12V 2.3
Max. Output Capacity	650W
Color	Black
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-500 msec
Hold Up Time	16msec (minimum) within 60% load
Input Current	9A max
Input Frequency Range	50 Hz - 60 Hz
Input Voltage	230 Vac
Operating Temperature	℃ to 40℃
Operating Humidity	20% to 85%,non-condensing
Storage Temperature	-40 ℃ to 55 ℃
Storage Humidity	10% to 95%, non-condensing
Cooling System	120mm Fan: 1800 R.P.M. ± 10%
Efficiency	82-86% efficiency @ 20-100% load
MTBF	100,000 hrs minimum
Safety Approval	CE/CB/TUV
PCI-E 6 2pin	PCI-E 6 2pin x 2
Warranty	3 Years
Note	***Features, Price and specifications are subject to change without notice.

650W Power Supply

THERMALTAKE Litepower 650W Non Modular ATX 2.0 Power Supply

THERMALTAKE TR2 S 650 650W 80+ White Non Modular ATX 2.0 Power Supply

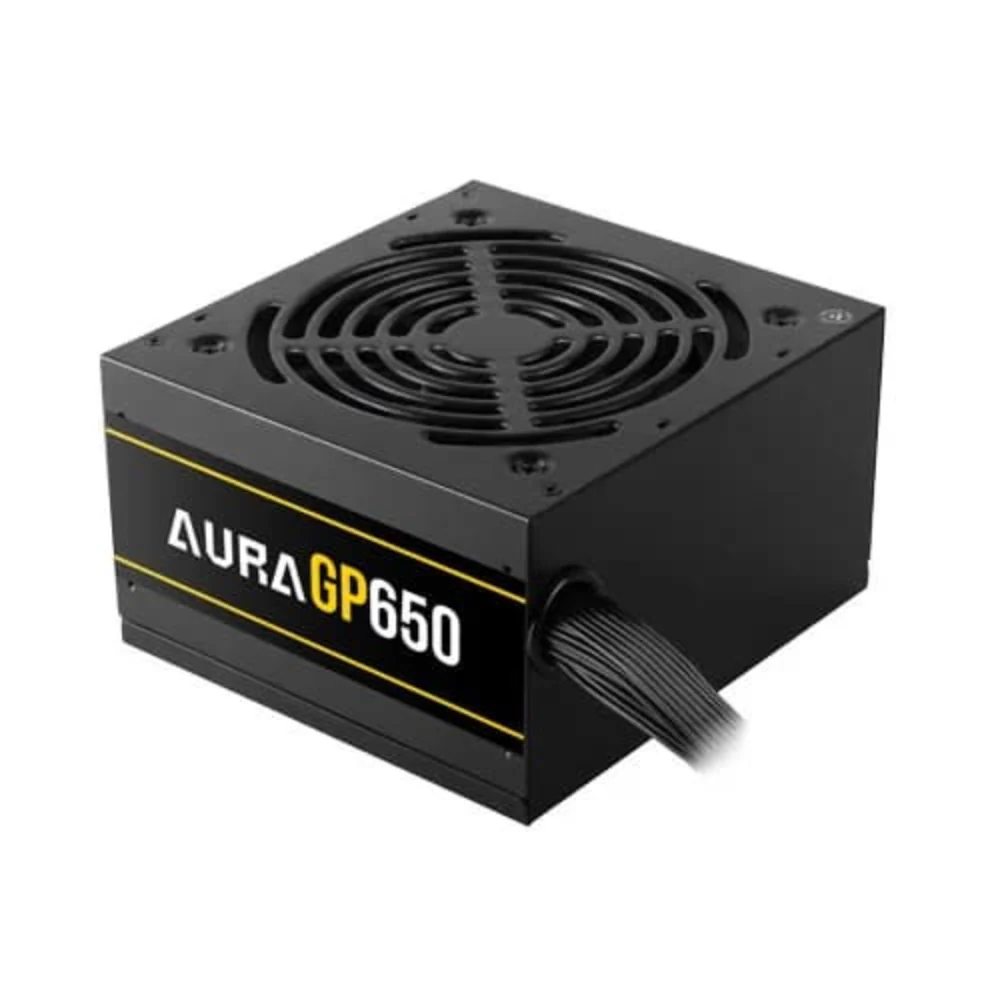

GAMDIAS Aura GP650 650 Watt 80+ White Non Modular ATX 2.0 Power Supply ( 650W )
