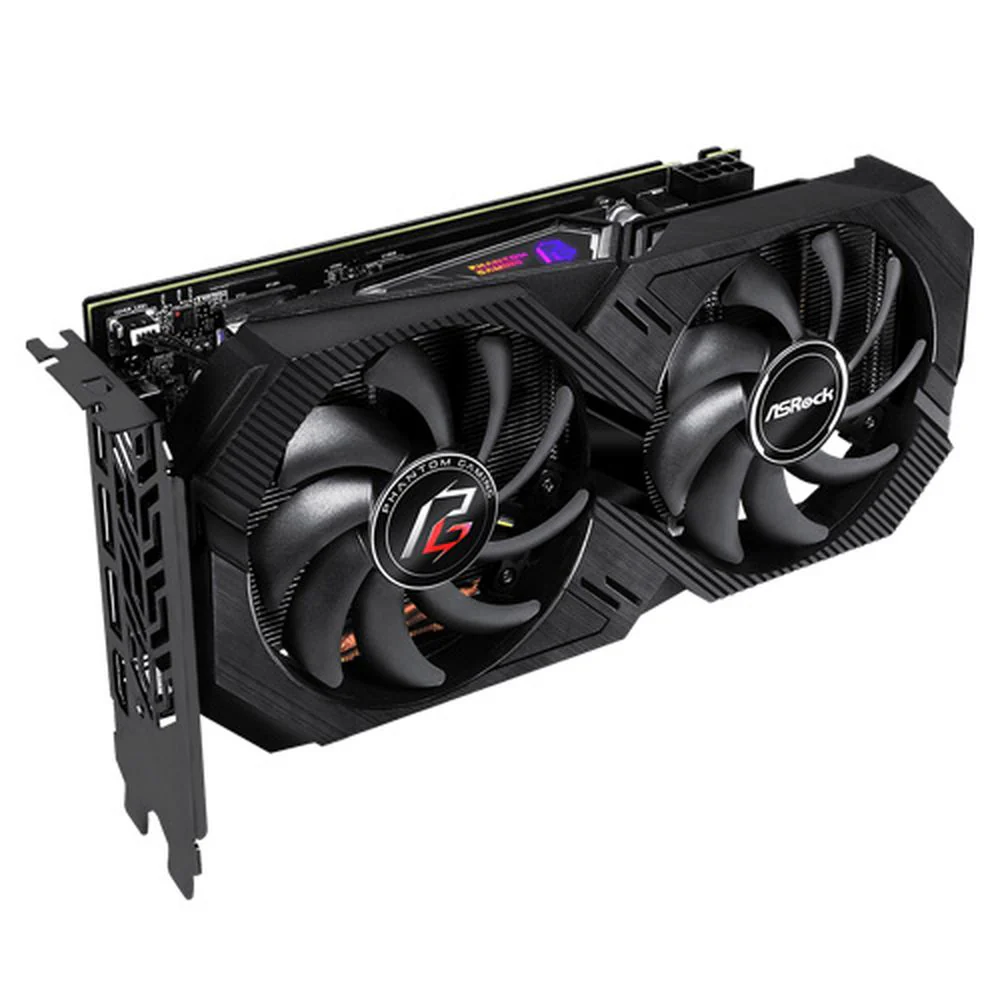

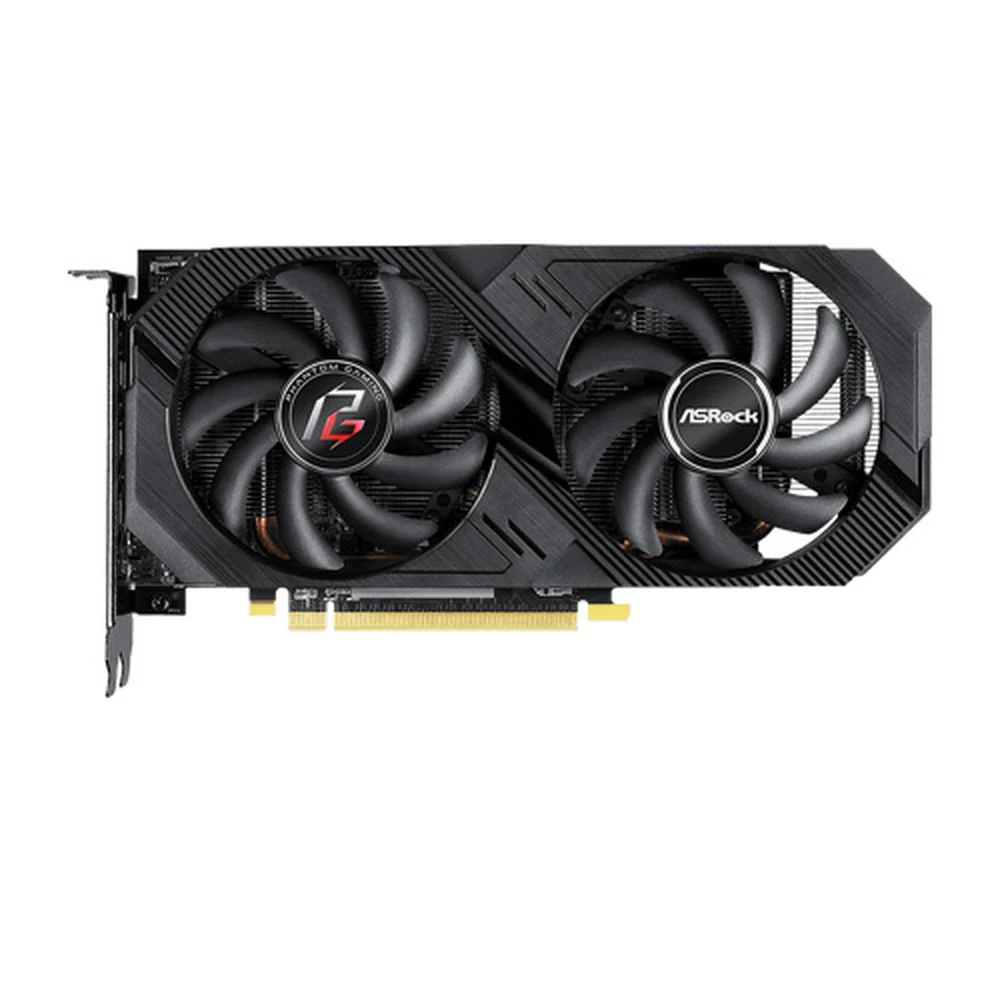

Features of ASROCK Radeon RX 580 Phantom Gaming U OC 8GB AMD Graphic Card



• Polychrome SYNC
  - High Performance Composite Heatpipes
  - Support 8K Resolution

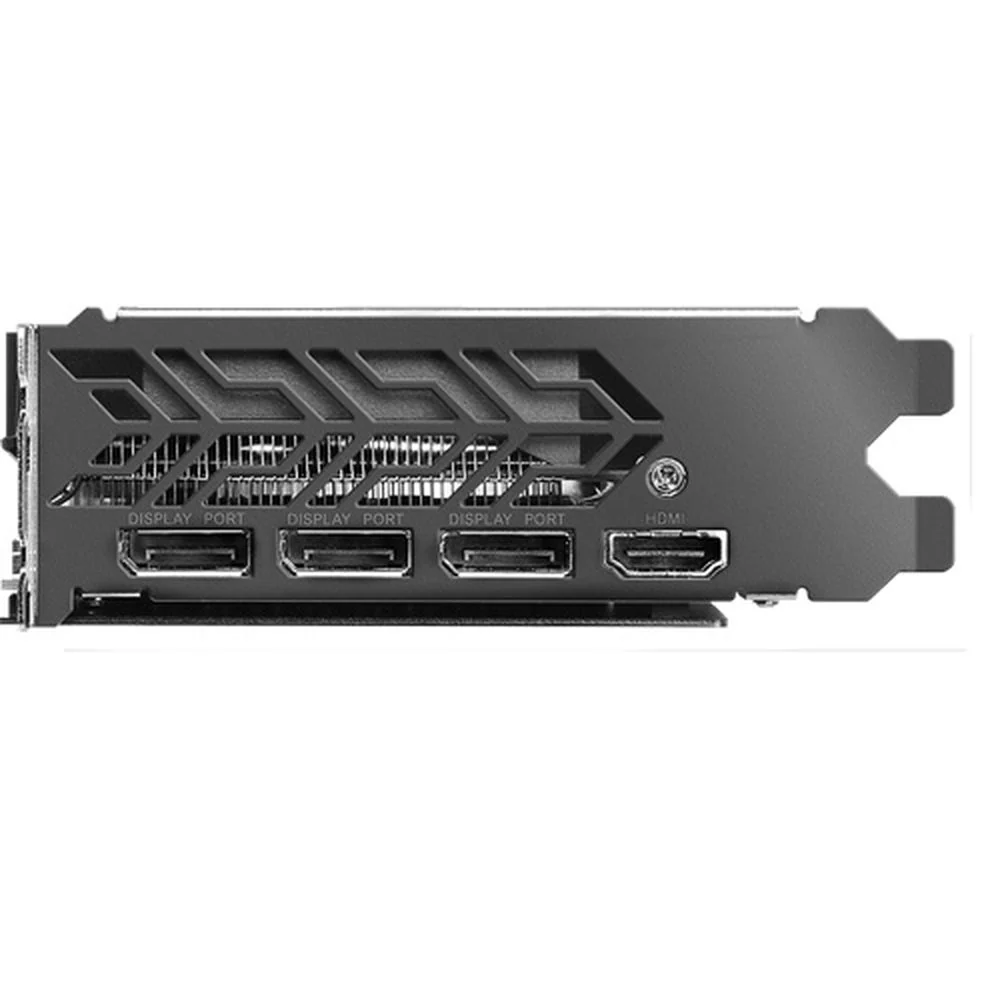

  - Graphic Outputs: 3 DisplayPort, HDMI
• ASRock Tweak Utility
  - Temperature and Fan Speed Monitoring
  - Core / Memory Clock Tweak
  - Core / Memory Voltage Tweak

Specifications of ASROCK Radeon RX 580 Phantom Gaming U OC 8GB AMD Graphic Card



Graphics Engine	AMD Radeon RX 580
Bus Standard	PCI Express x16 Gen3
DirectX	12
OpenGL	4.5
Memory	GDDR6 8GB
Engine Clock	- Up to 1355 MHz
Stream Processors	2304
Memory Clock	8000 MHz
Memory Interface	256-bit
Resolution	Digital Max Resolution: 8K (7680 x 4320)
Interface	- 1 x HDMI 2.0 - 3 x Display Port 1.4
HDCP	Yes
Multi-view	4
Recommended PSU	550W
Power Connector	1 x 8-Pin
Accessories	- 1 x Support CD - 1 x Quick Installation Guide
Dimensions	- 240.35 x 128.54 x 41.91 mm
