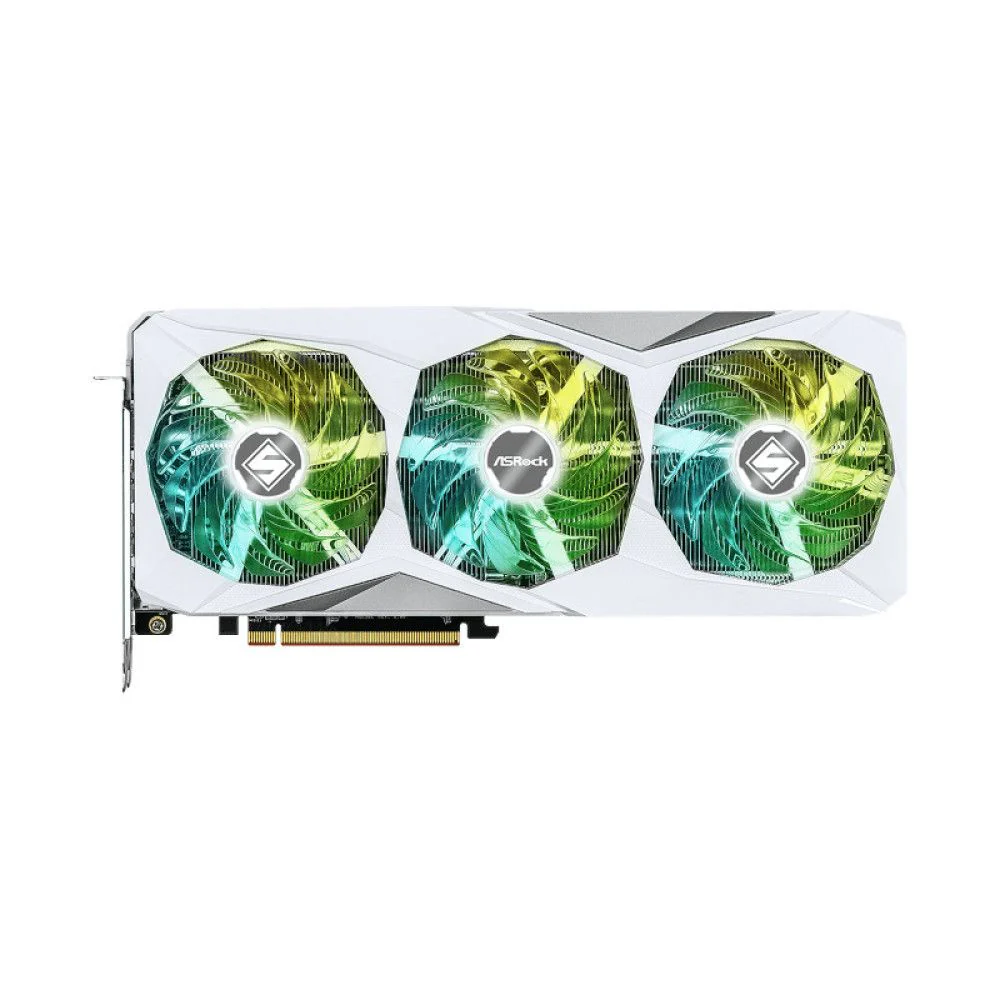

Features of ASROCK Radeon RX 7800 XT Steel Legend OC 16GB AMD Graphic Card



1. Boost Clock*: Up to 2520 MHz / 19.5 Gbps
2. Game Clock**: 2213 MHz / 19.5 Gbps

Key Specification

1. ASROCK Radeon RX 7800 XT Steel Legend OC graphics card
2. 16GB GDDR6 on 256-Bit Memory Bus
3. 60 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
4. 64MB AMD Infinity Cache™ technology
5. Microsoft® DirectX® 12 Ultimate
6. PCI® Express 4.0 Support
7. 2 x 8-pin Power Connectors
8. 3 x DisplayPort™ 2.1***, 1 x HDMI™ 2.1

Key Features

1. Polychrome SYNC
2. Triple Fan Design
3. Stylish Metal Backplate
4. Reinforced Metal Frame
5. Striped Axial Fan
6. Air Deflecting Fin
7. Ultra-fit Heatpipe



Specifications of ASROCK Radeon RX 7800 XT Steel Legend OC 16GB AMD Graphic Card



Graphics Engine	AMD Radeon RX 7800 XT ( RX7800XT-SL-16GO )
Bus Standard	PCI® Express 4.0 x16
DirectX	12 Ultimate
OpenGL	4.6
Memory	GDDR6 16GB
Engine Clock	Boost Clock*: Up to 2520 MHz Game Clock**: 2213 MHz *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Stream Processors	3840
Memory Clock	19.5 Gbps
Memory Interface	256-bit
Resolution	Digital Max Resolution: 7680x4320
Interface	3 x DisplayPort™ 2.1* 1 x HDMI™ 2.1 *DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously.
HDCP	Yes
Multi-view	4
Recommended PSU	800W
Power Connector	2 x 8-pin
Accessories	1 x Quick Installation Guide
Dimensions	304 x 131 x 56 mm, 2.8-slot
Net Weight	1242 g
Warranty	2 years
Note*	Price, feature and specifications are subject to change without notice
