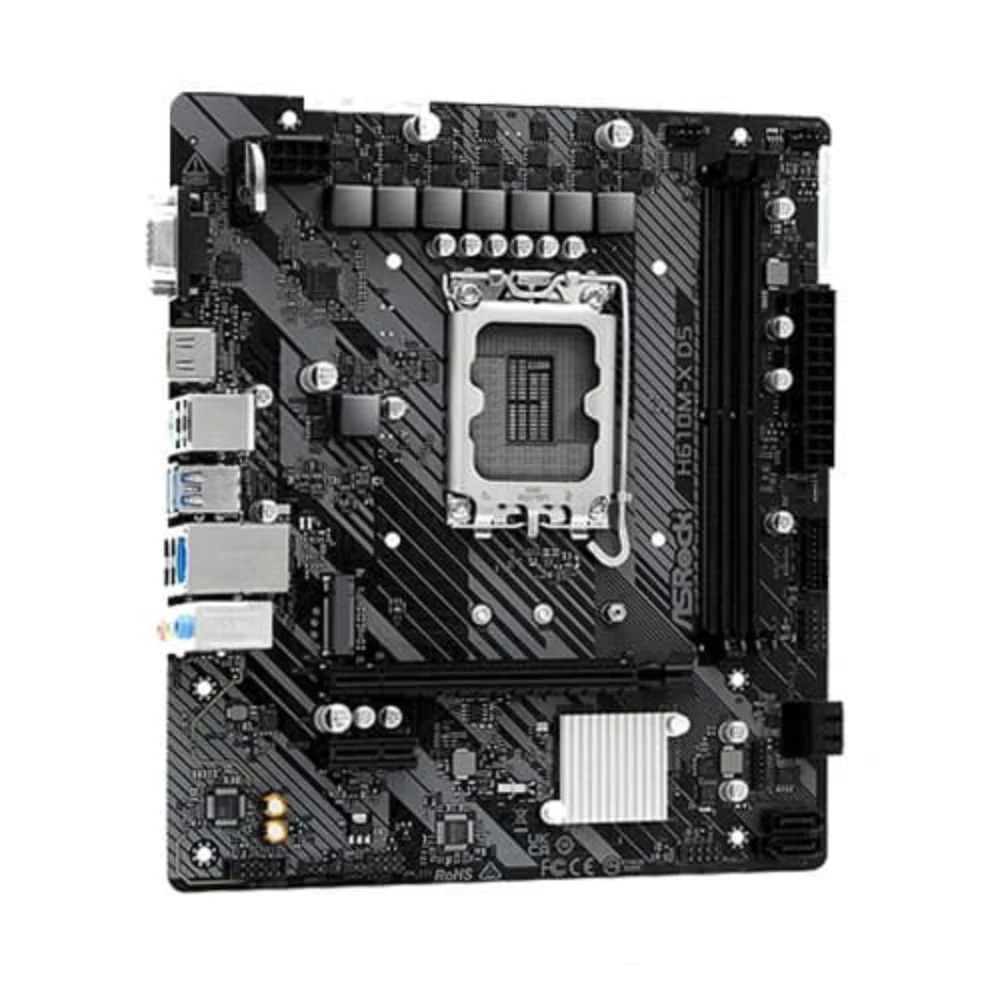

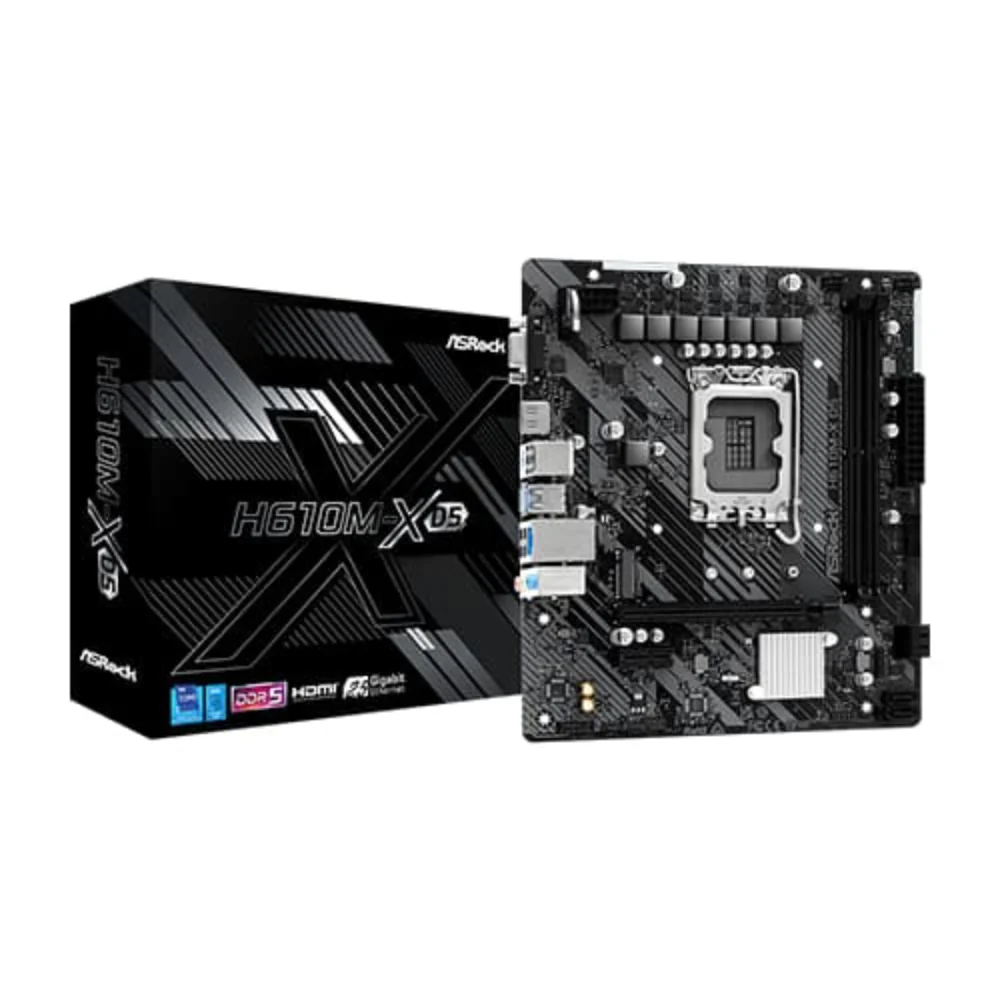

Features of ASROCK H610M-X DDR5 Intel Motherboard





• Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
• 6+1+1 Power Phase
• 2 x DDR5 DIMMs
• Supports Dual Channel, up to 5600
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: HDMI, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4)
• 4 USB 3.2 Gen1 Type-A (4 Rear, 2 Front),
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek 2.5G LAN

The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.

6+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Ultra M.2 32Gb/s (PCIe Gen3 x4)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.



Specifications of ASROCK H610M-X DDR5 Intel Motherboard





Product Code	H610M-X-D5
Unique Feature	Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer
CPU	- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset	- Intel® H610
Memory	- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600* - 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800* - Max. capacity of system memory: 96GB - Supports Intel® Extreme Memory Profile (XMP) 3.0
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics	- Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Slots	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
Storage	Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors*
USB	- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front)
Connector	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Accessories	- 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket
Form Factor	- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
OS	- Microsoft Windows® 10 64-bit / 11 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
