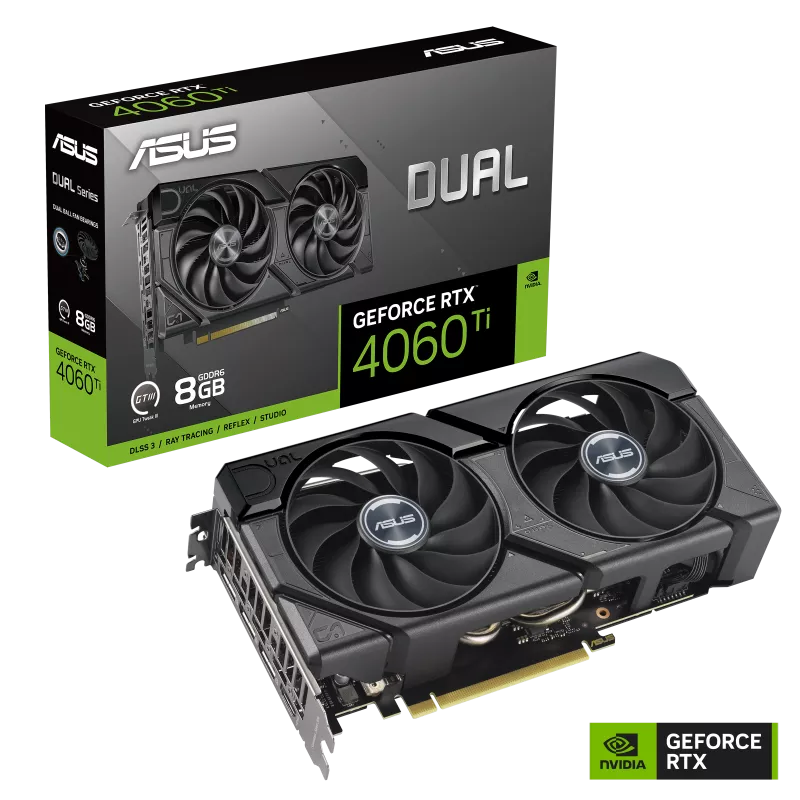

ASUS Dual GeForce RTX 4060 Ti EVO 8GB NVIDIA Graphic Card
Features of ASUS Dual GeForce RTX 4060 Ti EVO 8GB NVIDIA Graphic Card
- AI Performance: 353 AI TOPS
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- 0dB technology lets you enjoy light gaming in relative silence.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

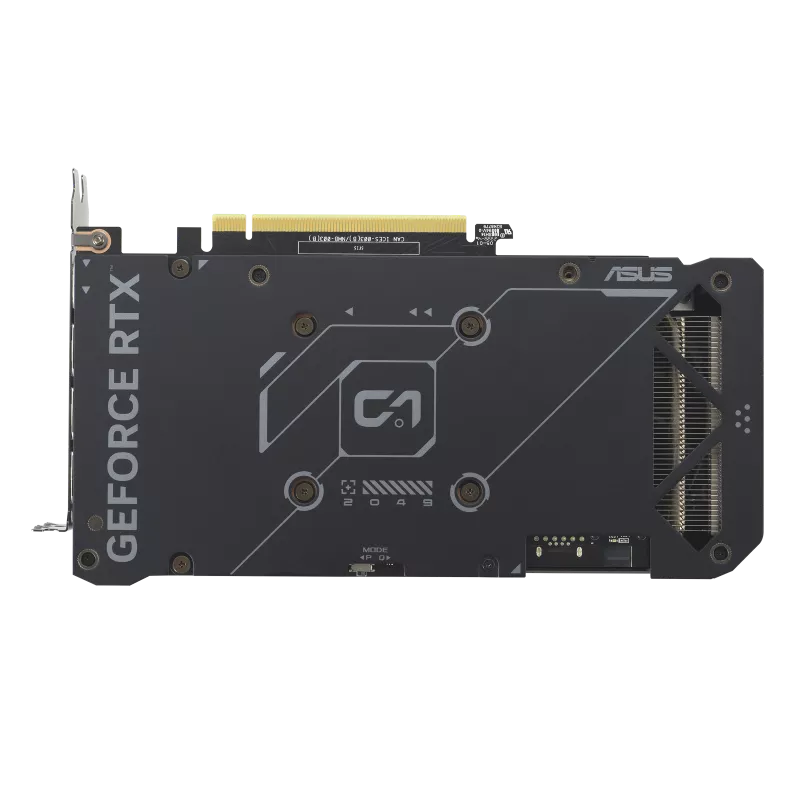

- A protective backplate secures components during transportation and installation.
- Auto-Extreme Technology uses automation to enhance reliability.
2x Fans. 2x Fun.

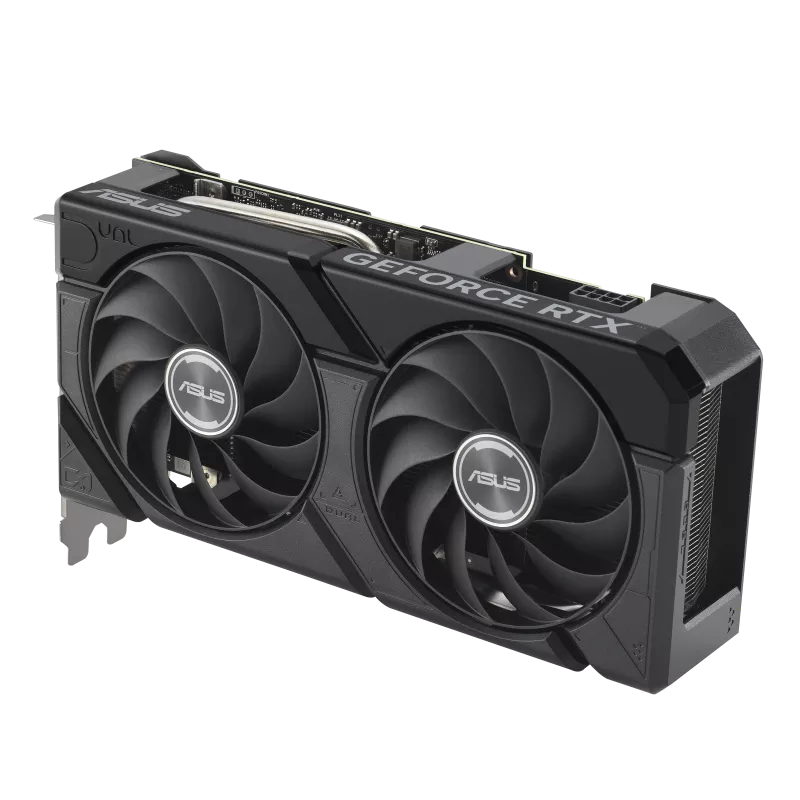

ASUS Dual GeForce RTX™ 4060 Ti EVO fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
144-hour Validation Program
“Extensive” may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
Specification of ASUS Dual GeForce RTX 4060 Ti EVO 8GB NVIDIA Graphic Card
| Part No | 90YV0J48-M0AA00 |
| Model | DUAL-RTX4060TI-8G-EVO |
| Graphic Engine | NVIDIA® GeForce RTX™ 4060 Ti |
| AI Performance | 353 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 8GB GDDR6 |
| Engine Clock | OC mode : 2565 MHz Default mode : 2535 MHz (Boost) |
| CUDA Core | 4352 |
| Memory Speed | 18 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

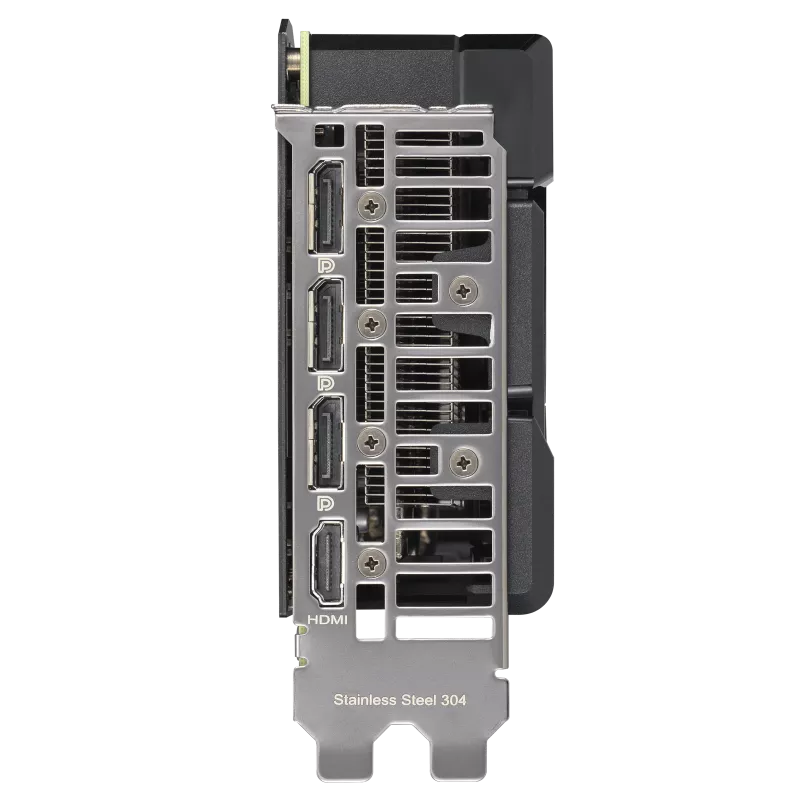

| Interface | Yes x 1 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Thank you card 1 x Speedsetup Manual |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 227.2 x 123.24 x 49.6 mm |
| Recommended PSU | 650W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
