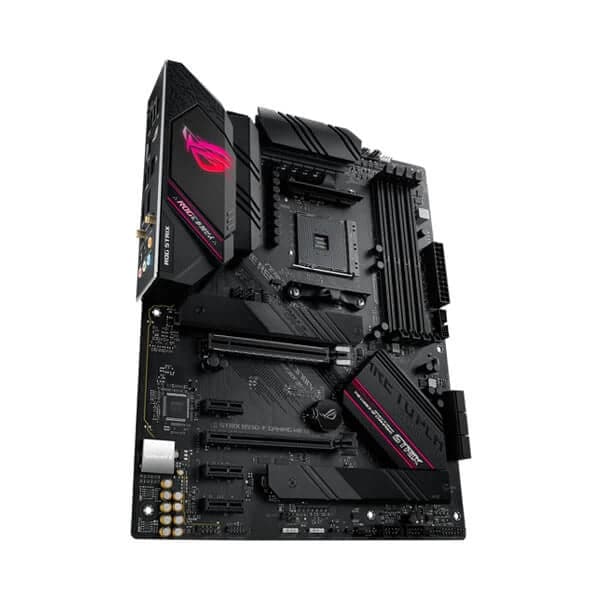

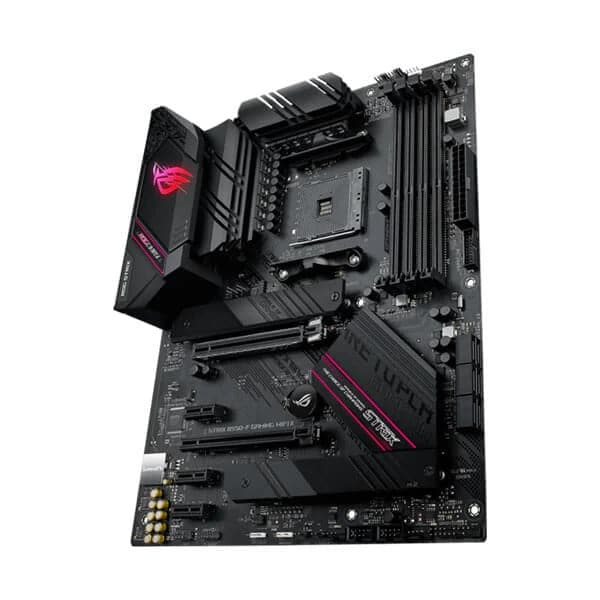

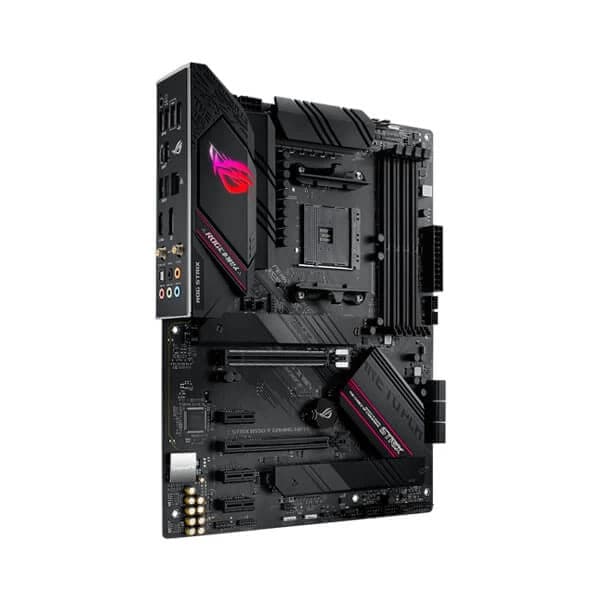

Feature of ASUS ROG Strix B550-F Gaming Wifi ll DDR4



AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe^® 4.0, 12+2 teamed power stages, Intel^® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting

• AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
• Best gaming connectivity: PCIe^® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C^®, plus HDMI^® 2.1 and DisplayPort™ 1.2 output
• Smooth networking: On-board WiFi 6E (802.11ax) and Intel^® 2.5 Gb Ethernet with ASUS LANGuard
• Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
• Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
• DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
• Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
• Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS^® Sound Unbound™ and Sonic Studio III for immersive sound

ASUS ROG Strix B550-F Gaming Wifi II series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming WiFi II gives you a head start on your dream build.

PCIe 4.0-Ready

ROG Strix B550-F Gaming WiFi II features two M.2 slots, one of which supports the PCIe 4.0 standard to provide maximum storage flexibility and the lightning-fast data speeds. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

WiFi 6E

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

Intel 2.5 Gb Ethernet

Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.

SupremeFX

Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-F Gaming WiFi II. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets.

Two-way AI Noise Cancelation

This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.

DTS: Sound Unbound dts

ROG Strix B550 series motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.

Undeniably ROG Strix

ROG Strix B550-F Gaming WiFi II embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.

OUTSHINE THE COMPETITION

ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Pre-mounted I/O shield

Patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install on the motherboard.

Q-LEDs

Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.

SafeSlot

The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.

BIOS FlashBack™

Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren’t present.

AI Networking

The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technology to ensure faster and smarter network optimization.

RAMCACHE III

RAMCache III software turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.



Specifications of ASUS ROG Strix B550-F Gaming Wifi ll DDR4

Model	STRIX B550-F GAMING WIFI II
CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 / 3000 Series Processors* Supports AMD Ryzen 5000 / 4000 G-Series Processors
Chipset	AMD B550
Number of Memory Slots	4×288pin
Memory Standard	DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	ECC Memory (ECC mode) support varies by CPU.
Buffer Supported	Un-buffered
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express 3.0 x16	1 x PCI Express 3.0 x16* * Supports x4 mode. * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3.
PCI Express x1	3 x PCIe 3.0 x1
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* * When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.
SATA RAID	2000/1/10
Onboard Video Chipset	Supported only by CPU with integrated graphic
Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels	7.1 Channels
LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Wi-Fi 6E 802.11a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
Back I/O Ports	2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports 1 x Wi-Fi Module 1 x DisplayPort 1 x HDMI port 1 x Intel I225-V 2.5G Ethernet 1 x Optical S/PDIF out 5 x Audio jacks 1 x BIOS FlashBack button
Onboard USB	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and cooling related 1 x 4-Pin AIO_Pump header 1 x 4-Pin CPU fan header 1 x 4-Pin CPU_OPT fan header 3 x 4-Pin Chassis fan headers Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front panel audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal sensor header 1 x Thunderbolt header
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)
Features	Special Features: ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM ,CPU , VGA , Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - M.2 heatsink AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3: - Performance And Power Saving Utility EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR DAEMON Tools Norton Anti-virus software (Free Trial version) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows 10 64-bit, Windows 11 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
