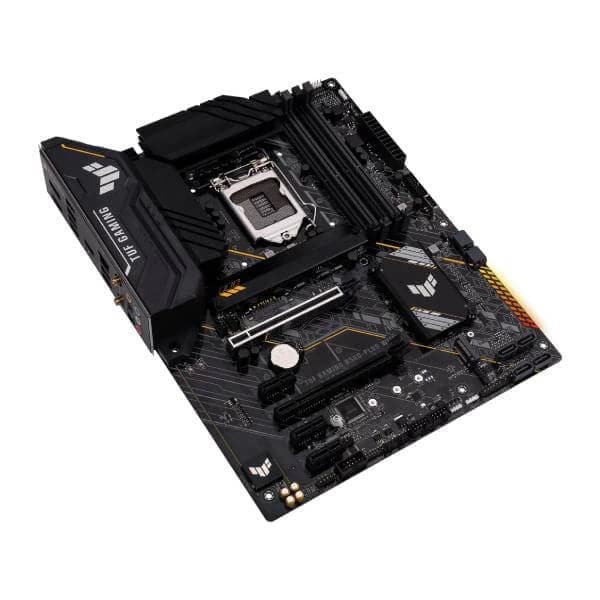

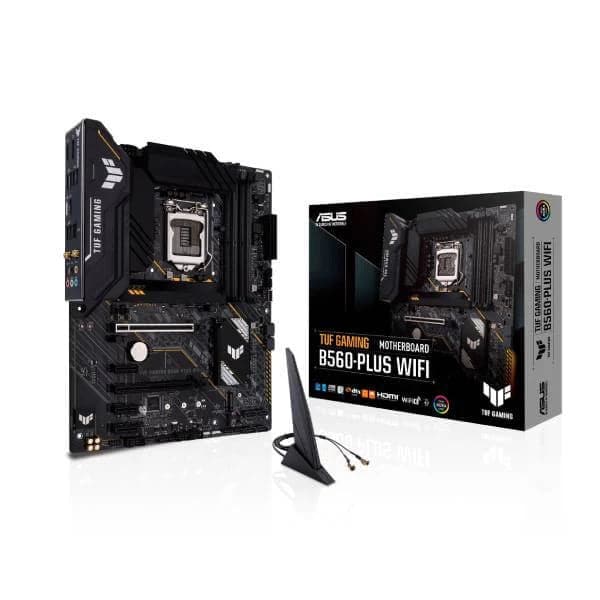

ASUS TUF Gaming B560-Plus Wifi DDR4 Intel Motherboard
Feature of ASUS TUF Gaming B560-Plus Wifi DDR4 Intel Motherboard
Intel® B560 (LGA 1200) ATX motherboard, 8+1 DrMOS Power stages , PCIe 4.0 support, DDR4 5000 (OC), Dual M.2 slot with flexible heatsink, HDMI 2.0, DisplayPort 1.4, SATA 6Gbps, 2.5Gb Ethernet, Front USB Type-C®, USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting
- Intel® LGA 1200 socket: Ready for 10th and 11th gen Intel® Core™ processors
- Enhanced power solution: 8+1 DrMOS power stages, 6-layer PCB , ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Flexible M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, front USB 3.2 Gen 1 Type-C®, Thunderbolt 4 support
- Made for online gaming: Intel Wi-Fi 6, Realtek 2.5Gb Ethernet, TUF LANGuard, and Turbo LAN technology
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Durable. Stable. Reliable.
ASUS TUF Gaming B560-Plus Wifi DDR4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING B560-PLUS WIFI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel® Core™ processors, plus support for faster memory and storage, TUF GAMING B560 series motherboards are the perfect foundation for your next high-core-count battle rig.
DrMOS
The onboard VRM of TUF GAMING B560 series motherboards utilize 8+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand.
Easy PC DIY
TUF GAMING motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF GAMING motherboards give you everything you need to build your dream gaming rig without adding complexity.
Specifications of ASUS TUF Gaming B560-Plus Wifi DDR4 Intel Motherboard
| CPU |
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B560 Chipset |
| Memory |
DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/ 4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/ 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics |
1 x DisplayPort 1.4 1 x HDMI™ 1.4 / 2.0*** * Graphics specifications may vary between CPU types. ** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
| Expansion Slots |
Intel® 11th &10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot(s)** - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 3 x PCIe 3.0 x1 slots * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory |
| Storage |
Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth |
Intel® Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later |
| USB |
Rear USB:Total 8 ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A + 1x Type-C®) 3 x USB 2.0 ports (3 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers |
| Back Panel I/O Ports |
2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A + 1x Type-C®) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks1 x Optical S/PDIF out port |
| Intrernal I/O Connectors |
1 x Thunderbolt 4 header Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
| Special Features |
ASUS TUF PROTECTION - Digital power design with Dr. MOS - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
| Software Features |
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX 30.5cm x 24.4cm |
| Warranty | 3 Years |
