Features of ASUS TUF Gaming RTX 4070 Ti Super 16GB OG NVIDIA Graphic Card





• Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
• 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Axial-tech fan design has been tuned with a reversed central fan direction for less turbulence
• Dual ball fan bearings last up to twice as long as conventional designs
• Military-grade capacitors rated for 20K hours at 105°C make the GPU power rail more durable
• Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles
• Auto-Extreme precision automated manufacturing for higher reliability
• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring



Axial-tech Upgrades

Air Superiority

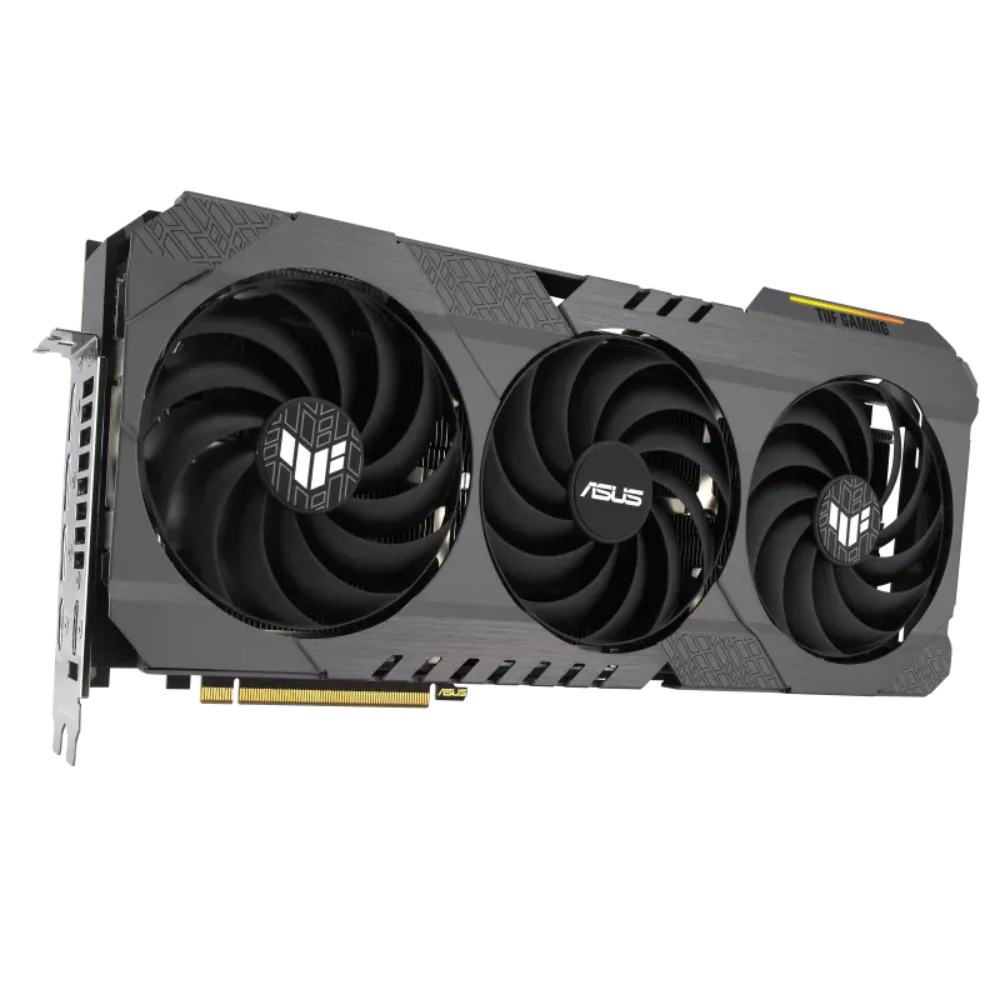

TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.

New Direction

Well-maintained Formation

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

3.2-SLOT DESIGN

Phase That Blaze

A generously sized heatsink efficiently soak up heat from the GeForce RTX 4070 TI SUPER GPU so that it can be whisked away by the three Axial-tech fans.

Military-grade 20K Capacitors

Resilient Squadron

A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

Vented Exoskeleton

Stay Frosty

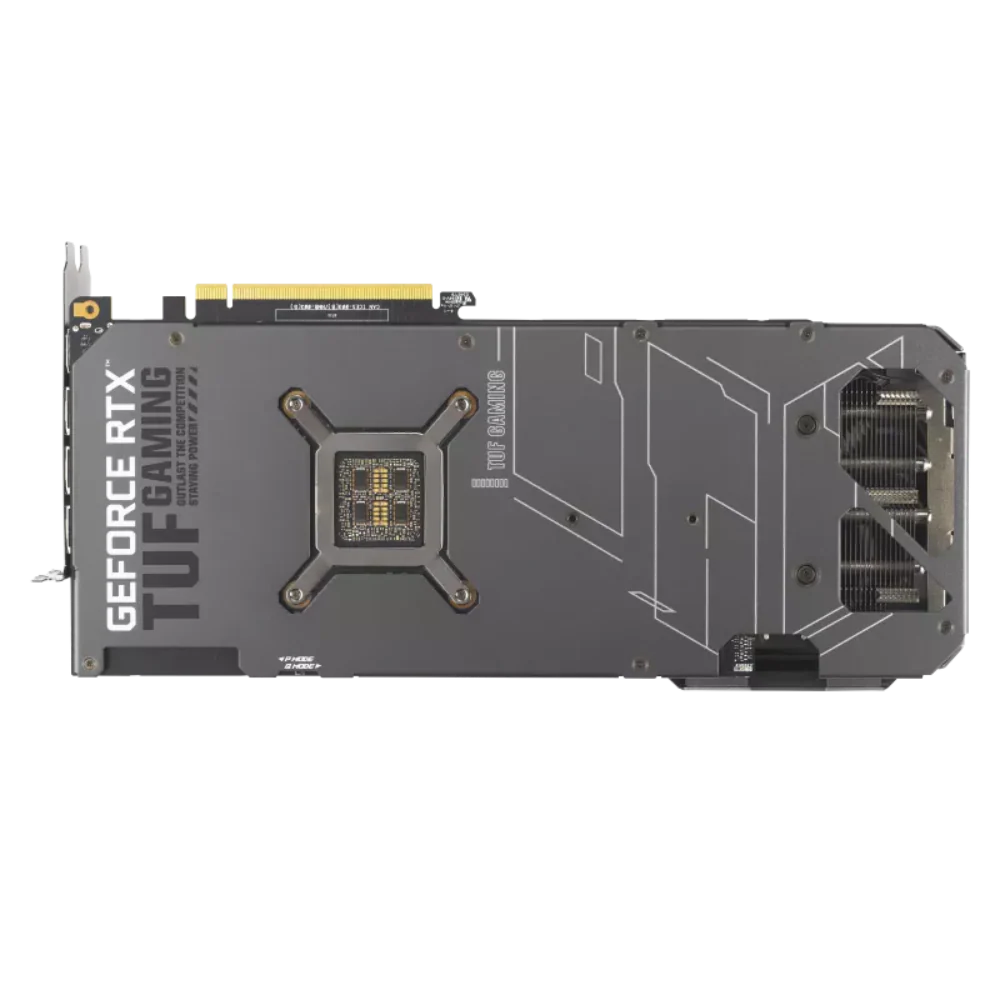

Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.

Auto-Extreme Technology

Reliability Boost

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.



Specification of ASUS TUF Gaming RTX 4070 Ti Super 16GB OG NVIDIA Graphic Card





Part No	90YV0LA1-M0AA00
Model	TUF-RTX4070TIS-16G-OG-GAMING
Graphic Engine	NVIDIA® GeForce RTX™ 4070 Ti SUPER
AI Performance	706
Bus Standard	PCI Express 4.0
OpenGL	OpenGL®4.6
Video Memory	16GB GDDR6X
Engine Clock	OC mode: 2640 MHz Default mode: 2610 MHz (Boost clock)
CUDA Core	8448
Memory Speed	21 Gbps
Memory Interface	256-bit
Resolution	Digital Max Resolution 7680 x 4320

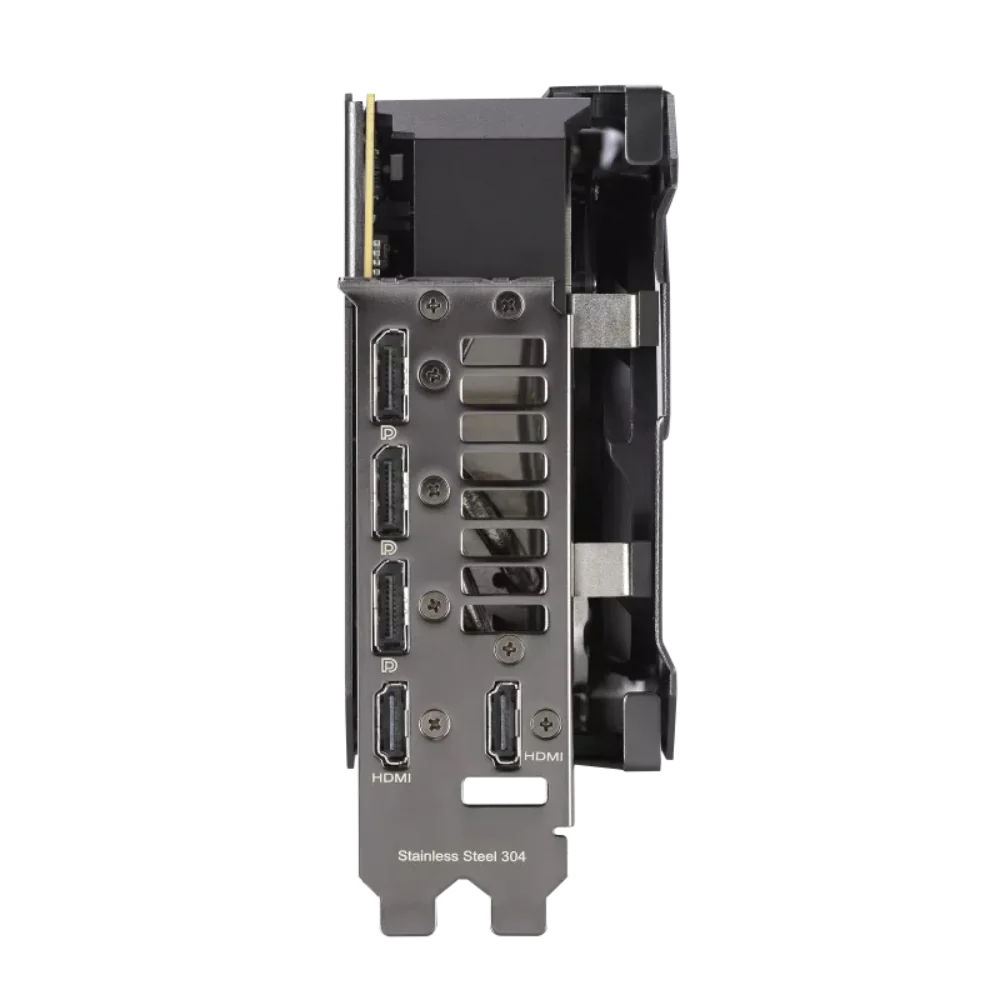

Interface	Yes x 2 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3)
Maximum Display Support	4
NVlink/ Crossfire Support	No
Accessories	1 x Collection Card 1 x Speedsetup Manual 1 x Adapter Cable (1 to 3) 1 x TUF Velcro Hook & Loop 1 x Thank you Card 1 x TUF Gaming Certificate
Software	ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions	325.9 x 140.2 x 62.8 mm 12.83 x 5.52 x 2.47 inches
Recommended PSU	750W
Power Connectors	1 x 16-pin
Slot	3.2 Slot
