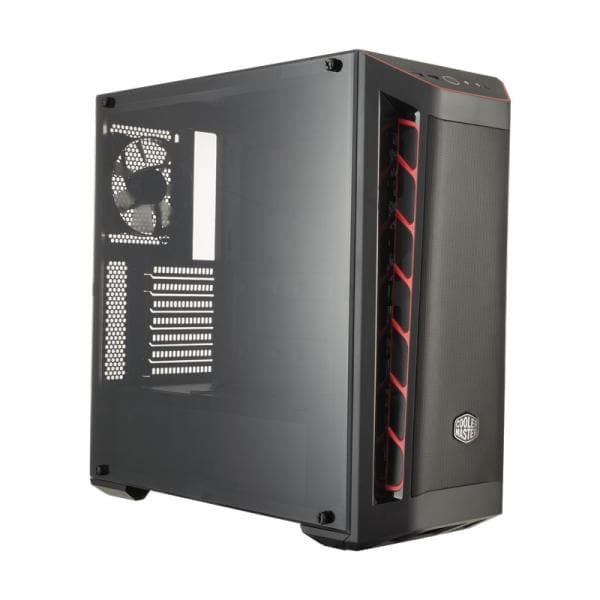

Features of COOLER MASTER MB511 Red Trim ATX Mid Tower Cabinet (Black)



MESH FRONT PANEL

The COOLER MASTER MB511 Red Trim ATX Mid Tower computer cpu case (Black) has the fine mesh front panel filters dust while offering efficient airflow for demanding systems.

AGGRESSIVE INTAKES

This ATX Cabinet has Large intakes on each side of the front panel pay tribute to high performance cars.

EXCELLENT THERMAL PERFORMANCE

Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.

FAN AND RADIATOR SUPPORT

Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you don't have to compromise on performance.

EDGE-TO-EDGE TRANSPARENT SIDE PANEL

Showcase your build through the transparent side panel.

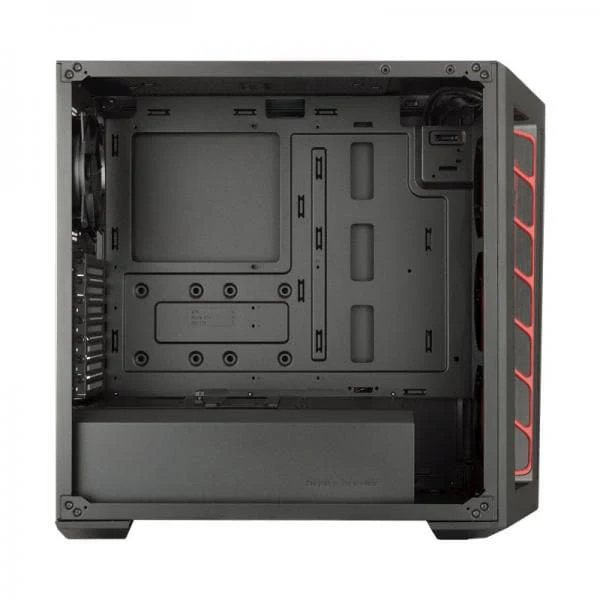

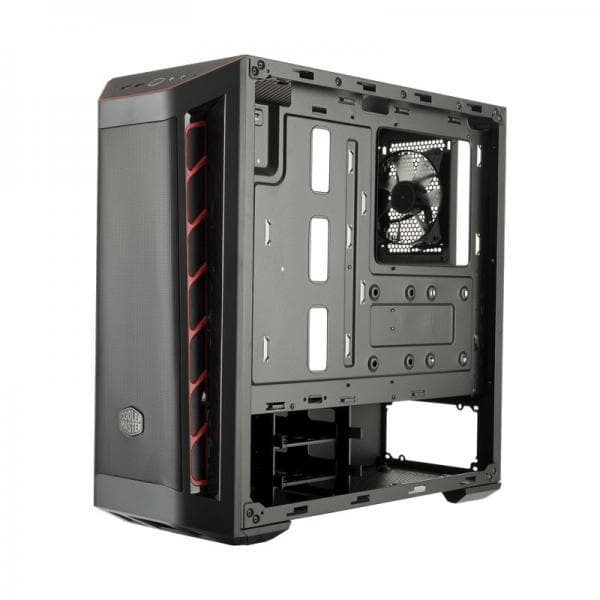

EXPANDING THE POSSIBILITIES

The spacious interior fits all standard motherboards for your gaming needs

MAIN COMPONENTS CLEARANCE

This cooler master cpu case supports CPU Coolers up to a height of 165mm, Graphic cards up to a length of 410mm and Power Supplies up to a length of 180mm

Specifications of COOLER MASTER MB511 Red Trim ATX Mid Tower Cabinet (Black)



Product Name	MasterBox MB511
Model number	MCB-B511D-KANN-S00
Available Color	Red
Materials	Steel, Plastic
Dimensions (L x W x H)	496 x 217 x 469 mm
Motherboard Support	ATX (up to 272mm width), Micro-ATX, Mini-ITX
Expansion Slots	7
5.25" Drive Bays	No
Combo 3.5"/2.5" Drive Bays	2 (Max. 2)
SSD Drive Bays	5 (Max. 6)
I/O Panel	USB 3.0 x 2, Audio In / Out
Pre-installed Fan(s)	Rear: 120mm x 1
Fan Support	Top: 120mm x 2 / 140mm x 2 Front: 120mm x 3 / 140mm x 2 (can only mount behind the front plate) Rear: 120mm x 1
Liquid Cooling Support	Front: 120 / 140 / 240 / 280 / 360mm radiator. (75mm clearance) Top: 120 / 240mm Rear: 120mm
Clearances	CPU Cooler: 165mm / 6.49" PSU: 180mm / 7.08" GFX: 410mm / 16.10"
Cable Routing	Behind MB Tray: 19mm / 0.74"
Dust Filters	Front, Top, Bottom
Power Supply Support	Bottom mount, ATX
Warranty	2 Years
Note	***Features, Price and Specifications are subject to change without notice.
