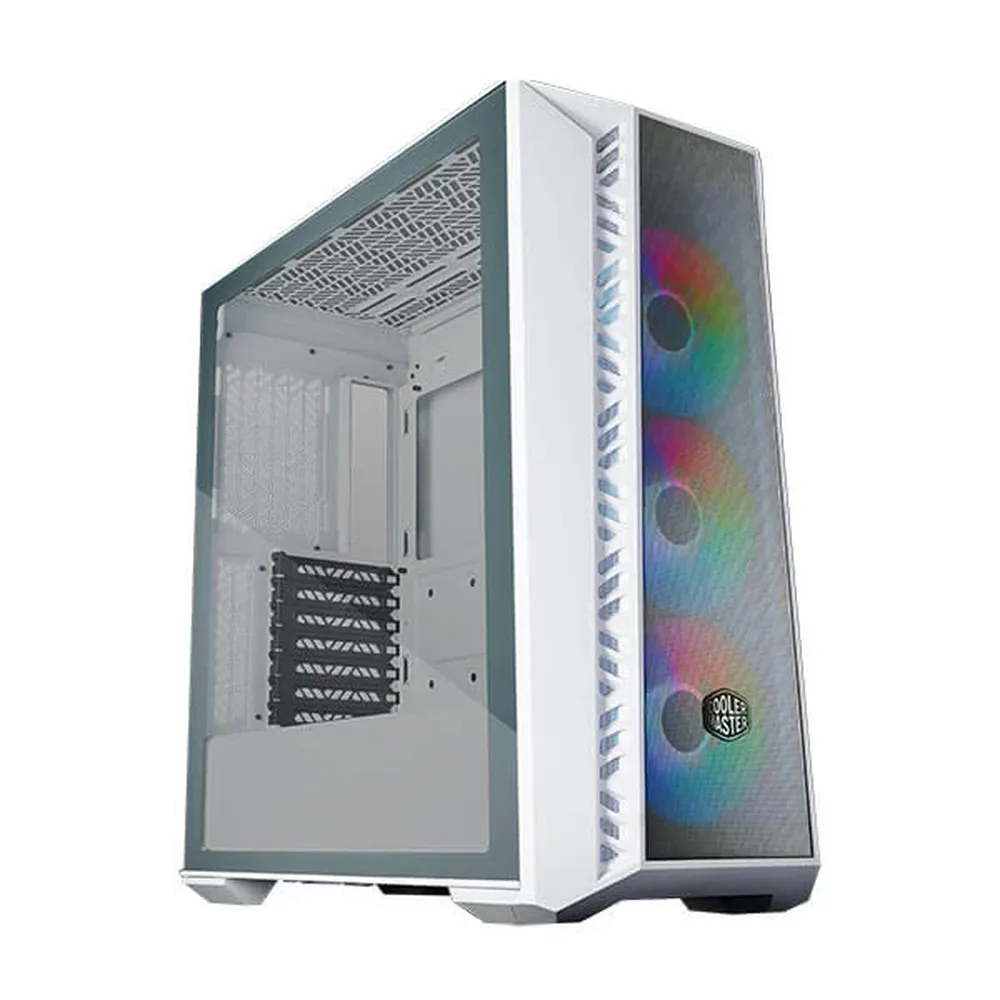

Features of COOLER MASTER MasterBox 520 Mesh ARGB (White)



FineMesh Performance Front Panel

The COOLER MASTER MasterBox 520 Mesh ARGB computer cpu case (White) features Large mesh intakes which offer unrestricted airflow and stellar thermals for demanding systems.

Three CF120 ARGB Fans Included

Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions. The included ARGB controller allows users to manage systems lighting independently from the hardware configuration if needed.

Removable Top Panel

The top panel of cooler master cpu case is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

Screwless & Tool-Free TG Side Panel

The tempered glass side panel in EATX Cabinet is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.

Versatile Cooling Options

Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

Removable HDD cage

The HDD cage is completely removable for improved access during assembly and system upgrades.

Upgraded Removable Dust Filter Bracket

The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.



Specifications of COOLER MASTER MasterBox 520 Mesh ARGB (White)





Model	MB520-WGNN-S00
Exterior Color	White
Materials - Exterior	Mesh, Steel, ABS Plastic, Tempered Glass
Materials - Left Side Panel	Tempered Glass
Dimensions (L x W x H)	499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body Size)
Motherboard Support	Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX, (up to 12" x 10.7" motherboards, may impact cable management feature)
Expansion Slots	7
3.5" Drive Bays	2
2.5" Drive Bays	3
I/O Panel	1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button
Included Accessories	ARGB Fans Hub
Pre-installed Fans - Front	3x CF120 ARGB
Fan Support - Top	3x 120mm, 2x 140mm
Fan Support - Front	3x 120mm, 2x 140mm
Fan Support - Rear	1x 120mm
Radiator Support - Top	120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
Radiator Support - Front	120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support - Rear	120mm
Clearance - CPU Cooler	165mm/6.49"
Clearance - PSU	200mm, (Recommended up to 170mm)
Clearance - GFX	410mm/16.1"
Dust Filters	Bottom, Front, Top
Power Supply Support	ATX
Series	MasterBox Series
Size	Mid Tower
Warranty	2 Years
Note	*** Image use as reference only *** Features, Price, Specifications are subject to change without notice.
