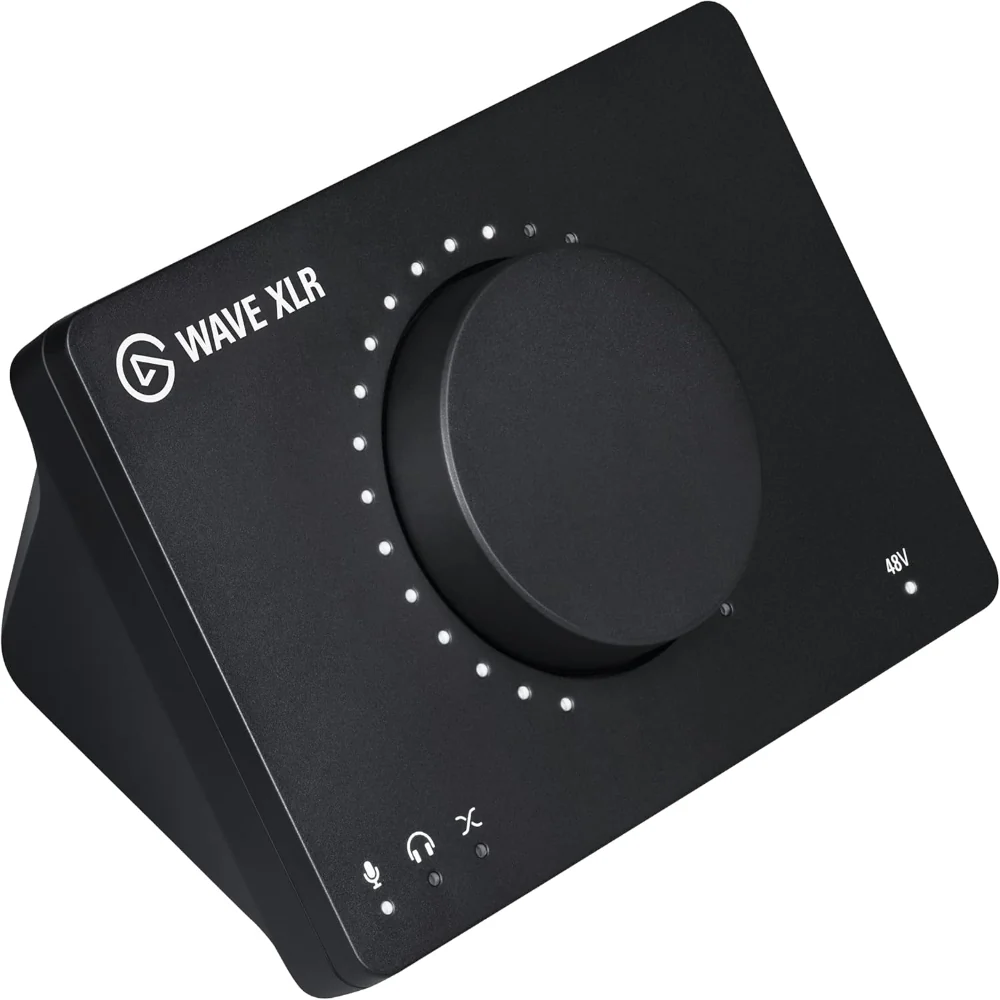

Features of CORSAIR Elgato Wave XLR Audio Mixer



A compact USB interface that gives your mic superpowers, Wave XLR features proprietary anti-distortion technology, swappable design components, and integration with custom mixing software.

You love your XLR microphone. You’ll love it even more with Wave XLR, a compact USB interface that gives your mic superpowers.

Wave XLR does the work of multiple devices and packs features you won’t find in conventional audio interfaces. Like proprietary anti-distortion technology, a capacitive mute button, direct integration with custom Wave Link mixing software, and an interchangeable faceplate

Give your mic the boost it needs without an external preamp. Up to 75 dB of ultra-low-noise gain makes notoriously insensitive dynamic mics sound loud and clear, while 48 volts of phantom power bring condenser mics to life.

Now you don’t need to watch levels while live, nor attempt to salvage distorted audio in post production. When input levels peak, proprietary Clipguard technology instantly reroutes sound through a second signal path that runs at a lower volume. The result is clean audio output, no matter how loud you scream.



Specification of CORSAIR Elgato Wave XLR Audio Mixer



Frequency Response	20 Hz - 20 kHz
Dynamic Range	100 dB (120 dB Clipguard engaged)
Equivalent Input Noise (EIN)	-130 dBV @ 60 dB gain
Gain Range	0 - 75 dB
Phantom Power	48 VDC, 7mA
Maximum Input Level	10 V @ 0 dB gain (Clipguard engaged)
Maximum Output Level	77 mW
Resolution	24-bit
Sample Rate	48 / 96 kHz
Interface	USB-C
System Requirements	Windows 10 (64-bit) | macOS 10.15 or newer
