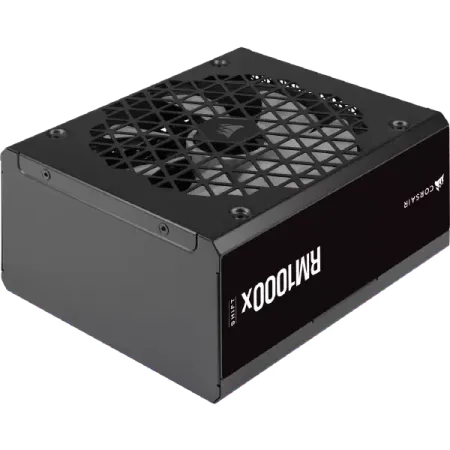

Features of CORSAIR RM1000X Shift 1000W 80+ Gold ATX 3.0 Fully Modular Power Supply



• Fully Modular Micro-Fit PSU Connectors: CORSAIR Type 5 Gen 1 micro-fit PSU cables mean you only connect the cables your system needs while taking up less space.
• Intel ATX 3.0 Certified: Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform and resisting transient power spikes.
• Zero RPM Fan Mode Support: At low and medium loads the cooling fan switches off entirely for near-silent operation.
• 100% 105°C-Rated Japanese Electrolytic Capacitors: Premium internal components deliver unwavering power delivery and long-term reliability.
• Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
• Cool your CPU and express yourself with a stylish LCD display Showing anything from your favorite gifs to real time system information

SIDE MOUNTED CONNECTIONS

An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.

The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12V-2×6 GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

FULLY MODULAR

CORSAIR TYPE 5 MICRO-FIT CONNECTORS

Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

105°C-RATED CAPACITORS

Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

CASE COMPATIBILITY

The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3″) wide. The PSU must also be accessible from the side when mounted in the case.



Specifications of CORSAIR RM1000X Shift 1000W 80+ Gold ATX 3.0 Fully Modular Power Supply



Total Connectors	1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 16-Pin PCIe (12VHPWR) 3x 6+2-Pin PCIe 16x 15-Pin SATA 8x 4-Pin Peripheral / Molex
Cable Design	Flat
PCIe Connector Distances	23.6" / 600 mm 25.6" / 650 mm 27.6" / 700 mm
SATA Connector Distances	17.9" / 455 mm 22.4" / 570 mm 27" / 685 mm 31.5" / 800 mm
Peripheral Connector Distances	17.7" / 450 mm 21.7" / 550 mm 25.6" / 650 mm 29.5" / 750 mm
ATX Connector Distance	24" / 610 mm
EPS Connector Distances	25.6" / 650 mm
Electrical
Total Wattage	1000 W
Number of +12 V Rails	1
Combined Power for +12 V	1000 W
Max Load for +12 V	83.3 A
Combined Power for +3.3/+5 V	150 W
Max Load for +3.3 V	20 A
Max Load for +5 V	20 A
Max Power for +5 Vsb	15 W
Max Load for +5 Vsb	3 A
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 6 to 12 A
General
Efficiency Rating	80 PLUS Gold
Active Power Factor Correction	Yes
Cooling
Fan Size	140 mm
Bearing Type	Fluid Dynamic Bearings (FDB)
Noise Level	0 to 30 dBA
Physical
Form Factor	ATX
Compliance	ATX 12 V v3.0
Mean Time Between Failures (MTBF)	100,000 Hours
