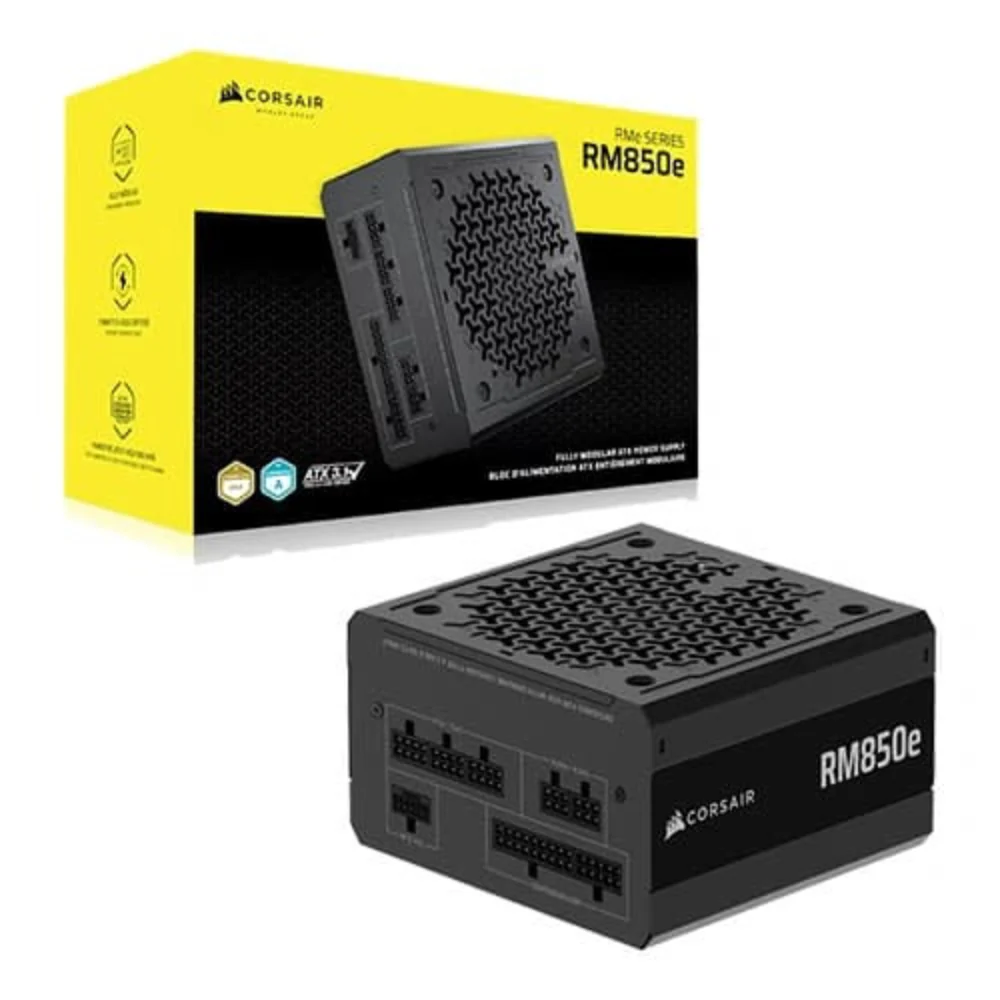

Features of CORSAIR RM850e 850W 80+ Gold ATX 3.1 Fully Modular Power Supply





• Fully-Modular design for cleaner wiring
• Native 600W-capable 12V-2x6 cable for high-end GPUs
• Cybenetics Gold-certified efficiency
• Ultra-flexible embossed cables with low-profile combs
• Compact size for improved cable management
• Intel ATX 3.1 Certified, PCIe 5.1 compatible
• Cybenetics Noise: A
• PATA Connector: 2
• EPS Connector: 2
• SATA Connector: 6
• Modern Standby: Yes
• Dimensions: 140x150x86
• PCIe Connector: 3
• Zero RPM Mode: Yes
• ATX Connector: 1
• ATX12V Version: 3.1
• MTBF Hours: 100,000 hours

CORSAIR RMe Series Fully Modular Low-Noise Power Supplies include a dedicated 12V-2x6 GPU power cable, ATX 3.1 certification and PCIe 5.1 compliance, and Cybenetics Gold rated efficiency for a quiet, reliable build. The RMe PSUs' compact size also allow for easier cable management.

50 SERIES GPUs ARE HERE

Pair a next-gen GPU with quality CORSAIR components for top-shelf performance and no hassles, right out of the box.

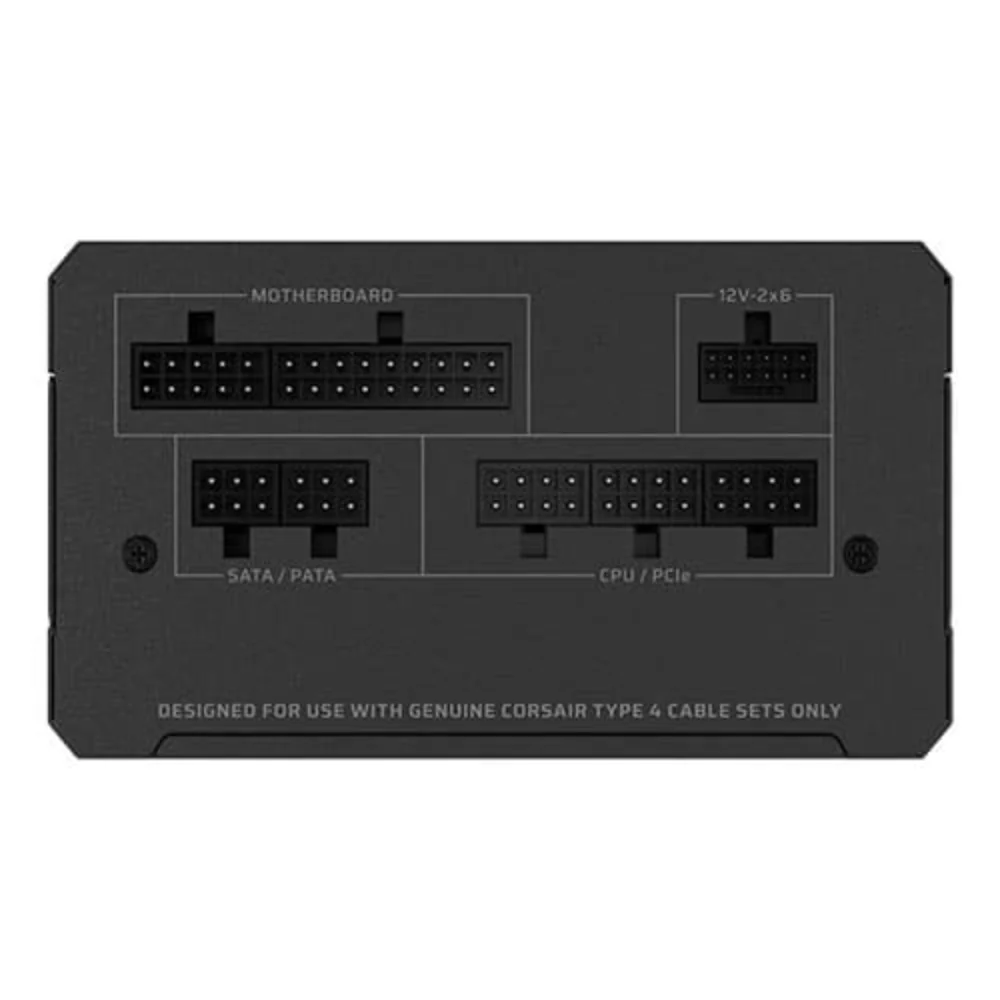

FULLY MODULAR CABLING

Keep cable clutter down by connecting only the cables your system needs. A native 600W 12V-2x6 GPU connector and multiple 8-pin PCIe connectors mean RMe power supplies more than meet the needs of modern and upcoming GPUs and CPUs.

ATX 3.1 CERTIFIED

The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12V-2x6 GPU cables included for use with modern and next-gen graphics cards.

CYBENETICS GOLD CERTIFIED

Steady power output at up to 90% efficiency and Cybenetics Gold certified for lower power consumption, less noise, and cooler temperatures.

LOW NOISE OPERATION IN A COMPACT SIZE

A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases. A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.

TECHNOLOGY AND RELIABILITY

For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.

With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.



Specification of CORSAIR RM850e 850W 80+ Gold ATX 3.1 Fully Modular Power Supply





Model No	CP-9020296-IN
Wattage	850 Watt
Series	RMe SERIES
Certification	80 Plus Gold
Modular	FULLY MODULAR
PCIe Connector (6+2)	1
SATA Connector	6
Warranty	7 Years
Note***	Features, Price and Specifications are subject to change without notice.Images use for Representation Purpose Only.
