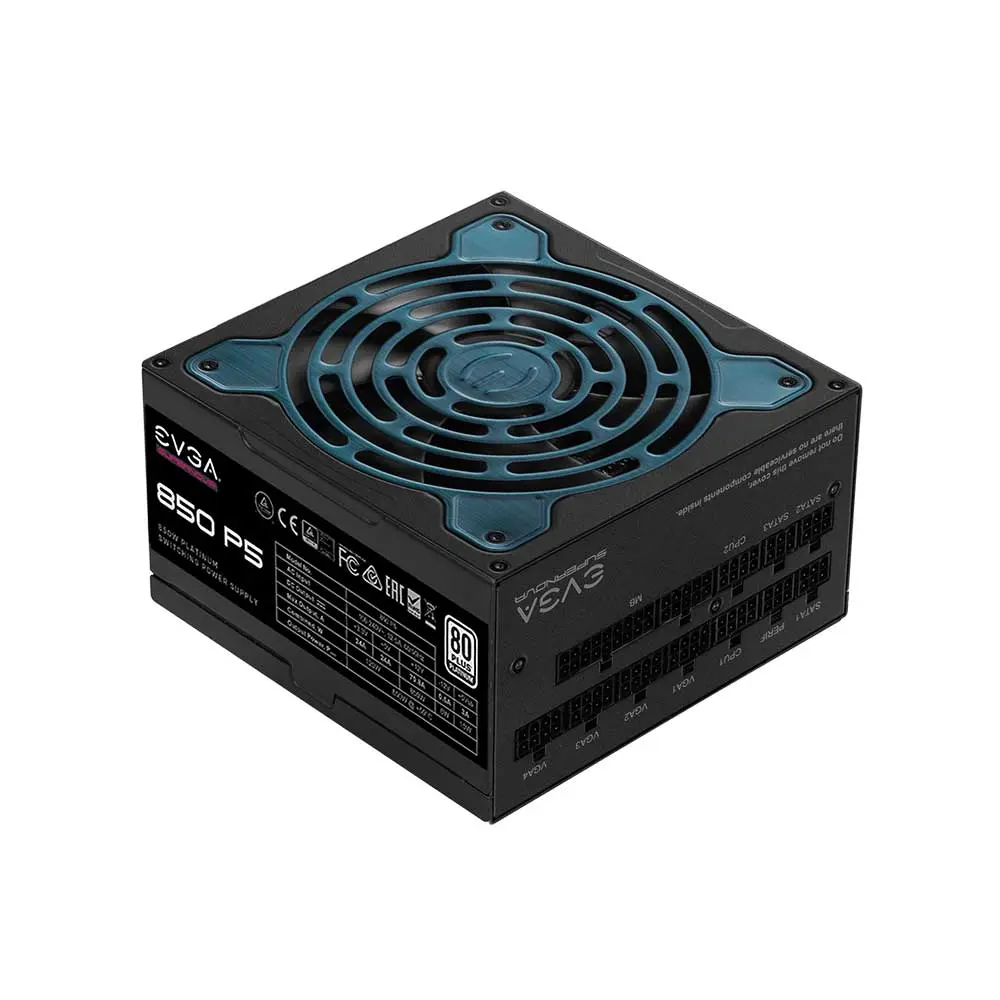

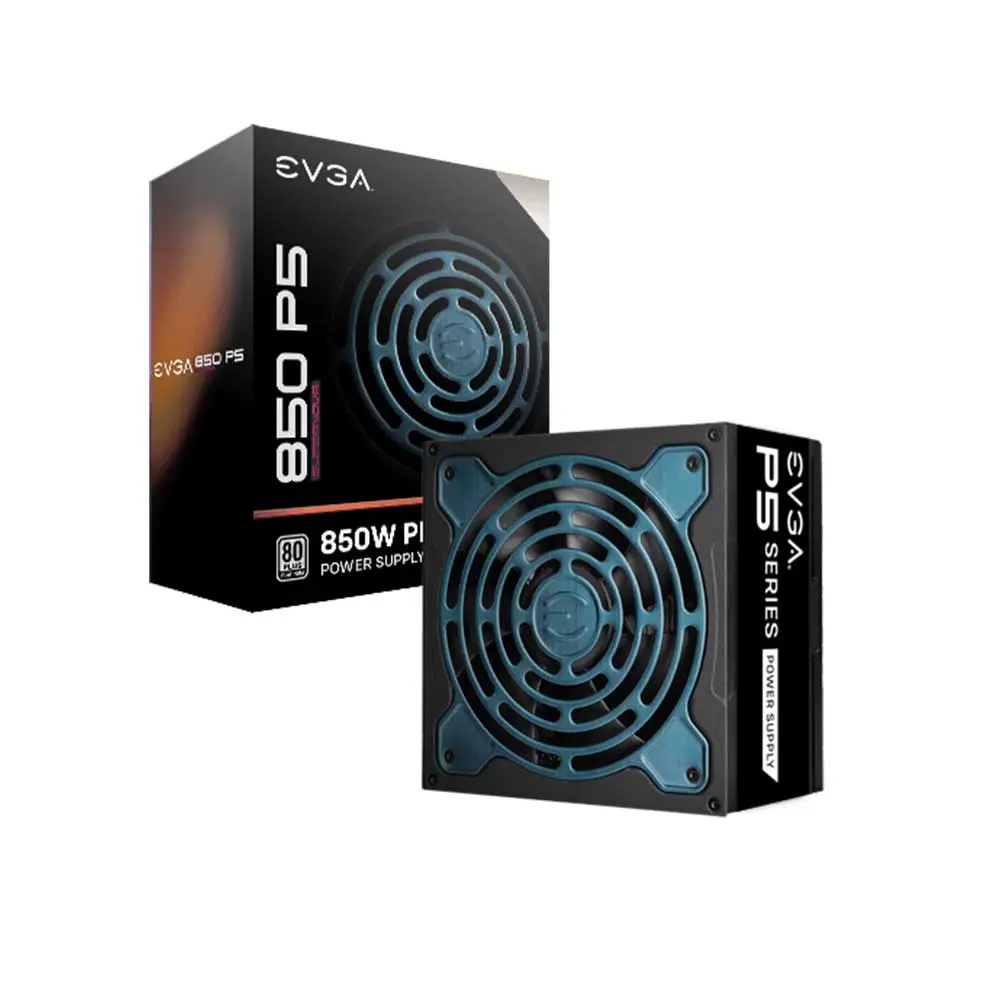

Features of EVGA Supernova 850 P5 80+ Platinum Fully Modular ATX Power Supply ( 850 W )



• 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
• 100% Japanese Capacitors ensure long-term reliability
• Fully Modular to reduce clutter and improve airflow
• Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
• Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
• Active Clamp +DC to DC design for efficient operation
• DC-DC Converter improves 3.3V/5V stability
• Active Power Factor Correction
• EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
• NVIDIA SLI & AMD Crossfire Ready
• Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

Time To Buy Platinum

The EVGA SuperNOVA P5 joins the elite ranks of the EVGA 80 PLUS Platinum power supplies. These power supplies continue to push the envelope with the latest certifications and Intel® power-on standards. Replete with 80 PLUS Platinum-rated efficiency, a fully-modular cable design, 100% Japanese capacitors, and an ultra-quiet 135mm Fluid Dynamic bearing fan with EVGA ECO mode, these power supplies are built for performance and silence.

PLATINUM RATED

80 PLUS Certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load, this power supply is 92% efficient or higher.

active clamp design

The P5 power supplies also feature an active clamp circuit design, DC-to-DC converter, and active PFC to provide tight voltage regulation and low ripple and noise.

100% Japanese Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese Capacitors.

EVGA eco mode

The P5 features a full-sized FDB fan in the chassis, which provides a longer life and quieter operation than traditional power supply fans. Enable EVGA ECO Mode to turn the P5 completely silent at low to medium loads.

Operating Temperature: 0° to 50° C

Japanese Capacitors: 100%

ECO Mode: Yes

MTBF:100,000 Hours

Size: 86mm (H) x 150mm (W) x 200mm (L)

Approvals:TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement

Fan Size / Bearing:135mm Fluid Dynamic Bearing



Specifications of EVGA Supernova 850 P5 80+ Platinum Fully Modular ATX Power Supply ( 850 W )



Product Code	220-P5-0850-X1
ATX Cable	1x 600mm
EPS Cable	2x 700mm
PCIe Cable	2x 700mm, 2x 700mm, 850mm
SATA Cable	3x 550mm, 650mm, 750mm
Four-Pin Peripheral Cable	1x 550mm, 650mm, 750mm, 850mm
Floppy Adapter	1x 100mm
AC Power	1x 1500mm
Modular Cable Type	Full

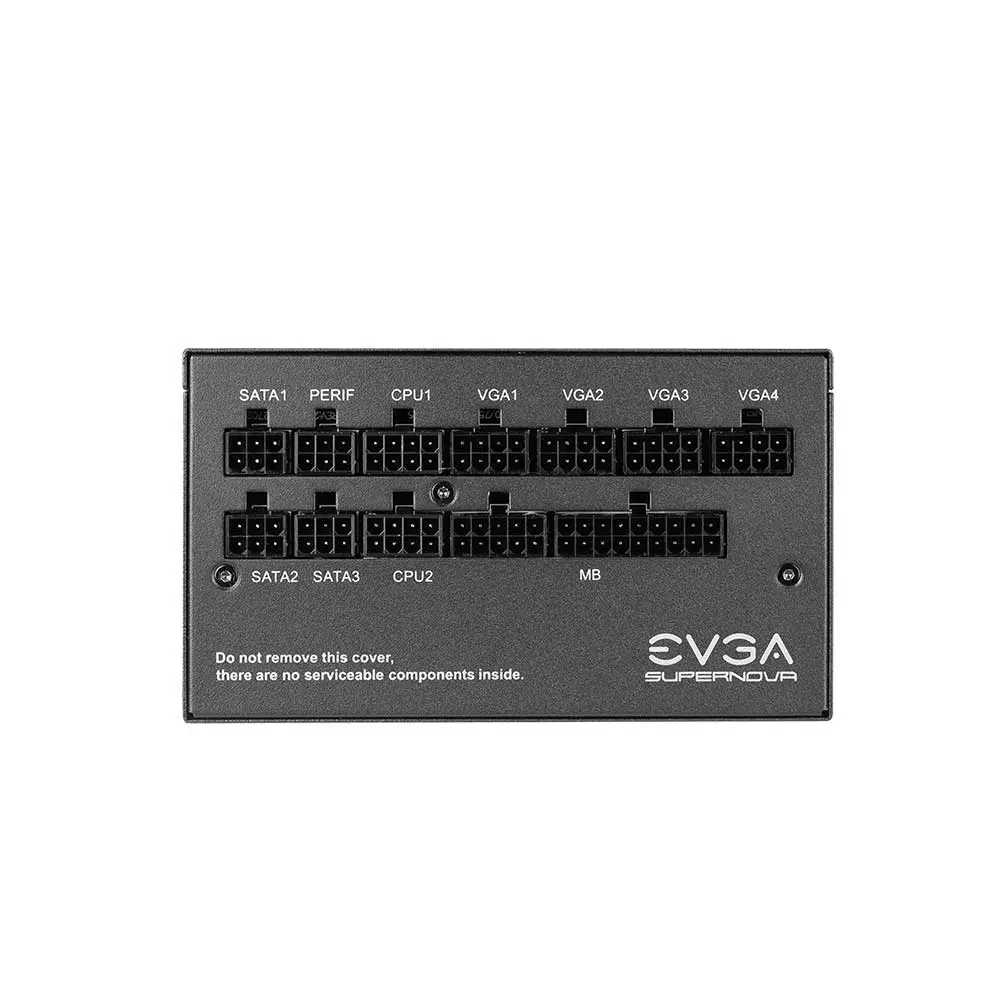

Connector Quantity
24 Pin ATX	1x 24pin
EPS (CPU)	2x 8pin (4+4)
PCIe	6x 8pin (6+2)
SATA	9x
Four-Pin Peripheral	4x
Floppy	1x
Power Specs
AC Input	100-240V~, 12-5A, 60/50 Hz
Rail	#ERROR!
Max Output	24A | 24A | 70.8A | 3A | 0.5A
120W	850W | 15W | 6W
Total	850W
Additional Details
Operating Temperature	0° to 50° C
Japanese Capacitors	1
ECO Mode	Yes
MTBF	100,000 Hours
Net Weight	6.70 lbs
Size	86mm (H) x 150mm (W) x 150mm (L)
Approvals	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing	135mm Fluid Dynamic Bearing
Warranty	10 Years
Note**	**Prices, Specifications & Features are subject to change without notice
