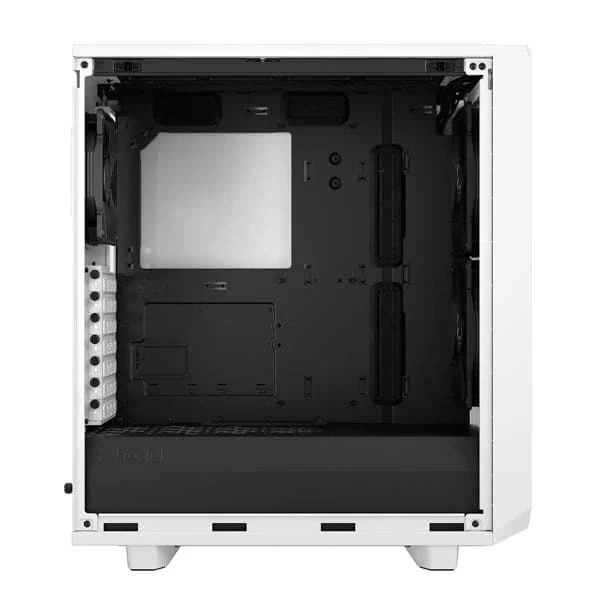

Features of FRACTAL DESIGN Meshify 2 Compact Clear ATX Mid Tower Cabinet (White)



Fractal Design cabinet is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

1. New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
2. Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
3. New front nylon filter that can be removed for increased airflow
4. Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
5. Open interior layout creates a smooth airflow path from intake to exhaust
6. Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
7. Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
8. Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)
9. Improved cable routing with three integrated cable alignment clips and six velcro straps

Removable front filter

• New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts

• Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access

• New front nylon filter that can be removed for increased airflow

Robust cooling

• Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm

• Open interior layout creates a smooth airflow path from intake to exhaust

• Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)

Fully featured

• Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism

• Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)

• Improved cable routing with three integrated cable alignment clips and six velcro straps

• The fully removable top panel opens to provide excellent interior access

Filtered airflow

…creates a smooth airflow path

Spaciously compact

Clever layout enables the capacity of much larger cases

Type-C interface

USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps

Smooth and quiet operation

The sturdy steel drive trays are vibration-damped by cushioning rubber grommets

Full length shroud

A full-length power supply shroud readily conceals the drive cage and excess cabling

Specifications of FRACTAL DESIGN Meshify 2 Compact Clear ATX Mid Tower Cabinet (White)



Dimension :	424 x 210 x 475 mm
Max GPU Length :	341 mm (360 mm without front fan)
Max PSU Length :	200 mm (165 mm with HDD cage and front fan)
Max CPU Cooler Height :	169 mm
Expansion Slot :	7
DVD Drive Bay :	NA
3.5 :	2 (included)
2.5 :	2 (included)
USB 2.0 Port :	1x USB 3.1 Gen 2 Type-C
USB 3.0 Port :	2x USB 3.0
Case Window :	Tempered Glass
Form Factor :	ATX / mATX / Mini-ITX
Radiator Compatibility :	Front radiator Up to 360/280 mm,Top radiator Up to 240 mm,Rear radiator 120 mm,Bottom radiator 120 mm (requires removal of HDD cage)
Warranty :	2 Years
