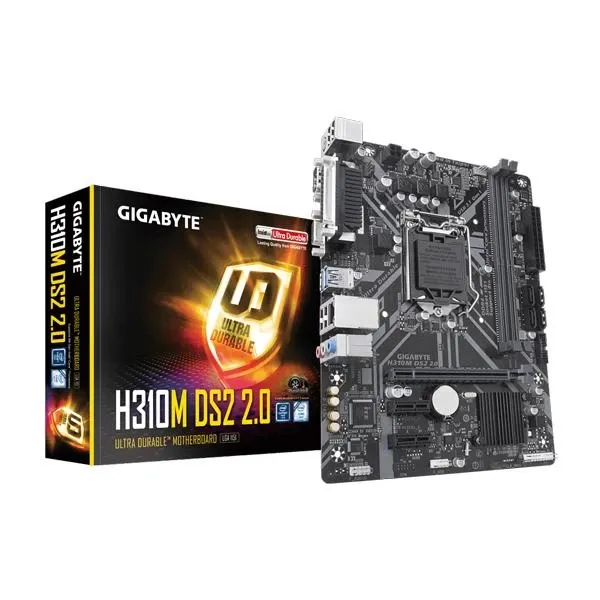

Features of GIGABYTE H310M DS2 2.0 DDR4 Intel Motherboard



1. Supports 9th and 8th Gen Intel® Core™ Processors
2. Dual Channel Non-ECC Unbuffered DDR4
3. 8-Channel HD Audio with High Quality Audio Capacitors
4. GIGABYTE H310M DS2 2.0 Exclusive 8118 Gaming LAN with Bandwidth Management
5. CEC 2019 Ready, Save Power With a Simple Click
6. Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
7. All new GIGABYTE™ APP Center, simple and easy use
8. Anti-Sulfur Resistors Design



Specifications of GIGABYTE H310M DS2 2.0 DDR4 Intel Motherboard



CPU	Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel® H310 Express Chipset
Memory	2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz Maximum shared memory of 1 GB
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channelSupport for S/PDIF Out * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface	Chipset:4 x SATA 6Gb/s connectors
USB	Chipset:4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart Survey Smart TimeLock Smart HUD S ystem Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
