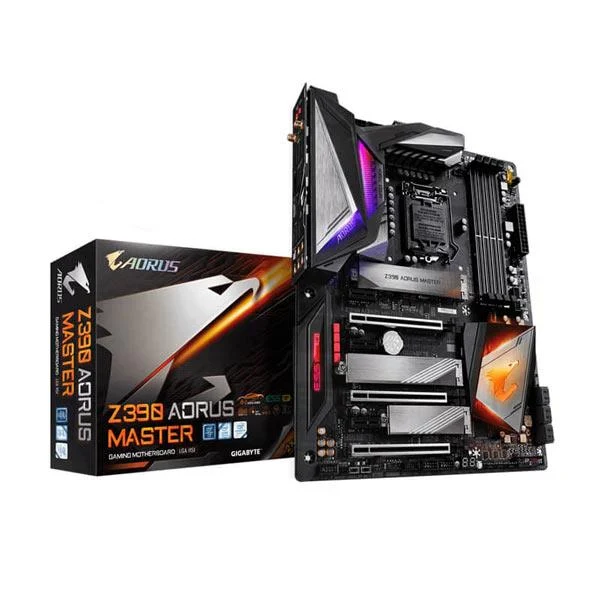

GIGABYTE Z390 Aorus Master DDR4 Intel Motherboard
Feature of Gigabyte Z390 Aorus Master DDR4
Ā
Based on the Intel Z390 chipset, this high-end motherboard offers a solid foundation for your next powerhouse based on 9th/8th gen Intel Core series processors. Advanced thermal system and 12-phase digital power design helps unleash the full potential of powerful components. The motherboard can take three M.2 SSDs and even Intel Optane memory to meet the demands of hardcore enthusiasts. Intel CNVi 802.11ac 2x2 Wave 2 Wi-Fi and USB 3.1 Gen 2 connector eliminated data bottlenecks in networking and data transfer. Also create a unique style for your build with RGB Fusion and addressable LED headers.
- Supports 9th and 8th Gen Intel Core Processors
- Dual-Channel Non-ECC Unbuffered DDR4, 4x DIMMs
- Intel Optane Memory Ready
- 12-Phase IR Digital VRM Solution with PowIRstage
- Advanced Thermal Design with Fins-Array Heat Sink and Direct-Touch Heat Pipe
- Onboard Intel CNVi 802.11ac 2x2 Wave 2 Wi-Fi
- 125dB SNR AMP-UP Audio with ALC1220 & High-End ESS SABRE 9118 DAC with WIMA Audio Capacitors
- USB TurboCharger for Mobile-Device Fast-Charge Support
- Intel Gigabit LAN with cFosSpeed
- RGB FUSION with Multi-Zone Addressable LED Light-Show Design, Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Front USB 3.1 Gen 2 Type-C Header
- Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard
- USB DAC-UP 2 with Adjustable Voltage
- CEC 2019 Ready, Save Power With a Simple Click
Design Concept
In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.
12-Phase Digital-Power Design
- 40A IR 3553 for Each vCore Phase
- High-Current-Capacity MOSFET
- Lower Temperature
- Server-Level Reliability
Z390 AORUS MASTER motherboard uses an all IR digital CPU power design which includes both digital PWM Controller and PowlRstage MOSFET, and is capable of providing at least 40A of power from each phase, for a total of 480A. These 100% digital controller and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel Core processors.
Advanced Thermal Design
Z390 AORUS MASTER reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heat sink, a heat pipe, and a thermal baseplate, to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers.
Baseplate + I/O Shield Armor
Durable Design and Easy Installation
- With an integrated base plate, GIGABYTE motherboards give users a strong foundation to build their gaming PCs.
- With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
- Integrated Power/Reset/Clear CMOS buttons on the I/O shield enable users easier debugging and operation.
Triple NVMe M.2 PCIe SSDs in RAID 0 Support
Extreme Performance with Gen3 x4 NVMe PCIe SSDs
Z390 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 3,551MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
USB DAC-UP 2
AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2. USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop. Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.
Smashes the GbE Barrier!
Integrated Intel 802.11ac Wave2 CNVi WIFI + Bluetooth 5
Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation. Moreover, Bluetooth 5 provides 4x range over BT4.2 and with faster transmission.
Ā
Specifications of Gigabyte Z390 Aorus Master DDR4
Ā
| CPU |
Support for 9th and 8th Generation IntelĀ® Coreā¢ i9 processors/ IntelĀ® Coreā¢ i7 processors/ IntelĀ® Coreā¢ i5 processors/ IntelĀ®Coreā¢ i3 processors/ IntelĀ® PentiumĀ® processors/ IntelĀ® CeleronĀ® processors in the LGA1151 package L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) |
| Chipset | IntelĀ® Z390 Express Chipset |
| Memory |
4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory** ** Please note that the support for system total memory size depends on the CPU installed. Dual channel memory architecture Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor-IntelĀ® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB Actual support may vary by CPU |
| Audio |
RealtekĀ® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE 9118 DAC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | IntelĀ® GbE LAN chip (10/100/1000 Mbit) |
| Wireless Communication module |
IntelĀ® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector. 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an IntelĀ® CNVi wireless module (CNVI) |
| Multi-Graphics Technology |
Support for NVIDIAĀ® Quad-GPU SLIā¢ and 2-Way NVIDIAĀ® SLIā¢ technologies Support for AMD Quad-GPU CrossFireā¢ and 3-Way/2-Way AMD CrossFireā¢ technologies |
| Storage Interface |
Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2 and SATA connectors. IntelĀ® Optaneā¢ Memory Ready |
| USB |
Chipset: 1 x USB Type-Cā¢ port with USB 3.1 Gen 2 support, available through the internal USB header 1 x USB Type-Cā¢ port on the back panel, with USB 3.1 Gen 2 support 3 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x Addressable LED strip headers 2 x Addressable LED strip power select jumpers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-Cā¢ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Thunderboltā¢ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x OC button 1 x reset button 2 x temperature sensor headers 2 x BIOS switches 1 x Clear CMOS jumper Voltage Measurement Points |
| Back Panel Connectors |
1 x Power/Reset button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-Cā¢ port, with USB 3.1 Gen 2 support 3 x USB 3.1 Gen 2 Type-A ports (red) 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| I/O Controller | iTEĀ® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOSā¢ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer Smart Survey USB Blocker USB DAC-UP 2 USB TurboCharger Support for Q-Flash Support for Xpress Install |
| Bundle Software |
NortonĀ® Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license) |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
