Features Of MSI GeForce RTX 4070 Super Gaming Slim 12GB



Get equipped for supercharged gaming and creating with the NVIDIA® GeForce RTX™ 4070 SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.

Boost Clock / Memory Speed

• 2640 MHz / 21 Gbps
• 12GB GDDR6X

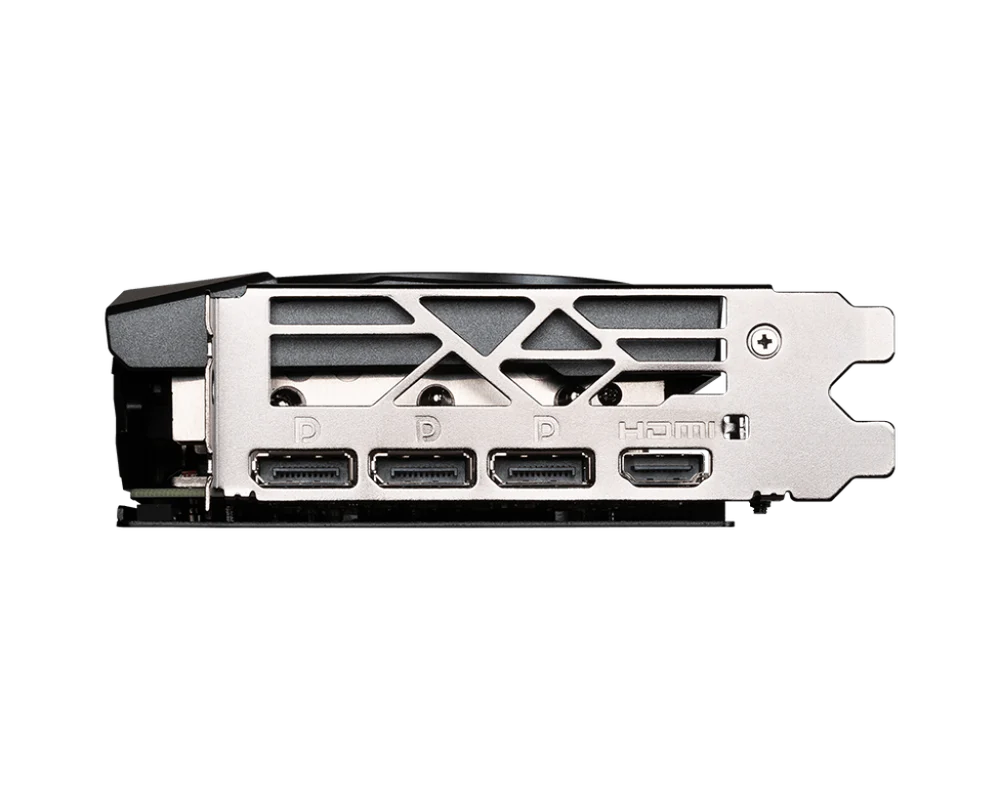

• DisplayPort x 3 (v1.4a)
  HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

TRI FROZR 3 Thermal Design

• TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
• Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
• Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
• Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.

Afterburner

Take full control with the most recognized and widely used graphics card overclocking software in the world.



Specifications Of MSI GeForce RTX 4070 Super Gaming Slim 12GB



MODEL NAME	MSI GeForce RTX 4070 Super Gaming Slim 12GB
GRAPHICS PROCESSING UNIT	NVIDIA® GeForce RTX™ 4070 SUPER
INTERFACE	PCI Express® Gen 4
CORE CLOCKS	Extreme Performance: 2490 MHz (MSI Center) Boost: 2475 MHz
CUDA® CORES	7168 Units
MEMORY SPEED	21 Gbps
MEMORY	12GB GDDR6X
MEMORY BUS	192-bit
OUTPUT	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
HDCP SUPPORT	Y
POWER CONSUMPTION	220 W
POWER CONNECTORS	16-pin x 1
RECOMMENDED PSU	650W
CARD DIMENSION (MM)	307 x 125 x 46 mm
WEIGHT (CARD / PACKAGE)	972 g / 1585 g
DIRECTX VERSION SUPPORT	12 Ultimate
OPENGL VERSION SUPPORT	4.6
MAXIMUM DISPLAYS	4
G-SYNC® TECHNOLOGY	Y
DIGITAL MAXIMUM RESOLUTION	7680 x 4320
