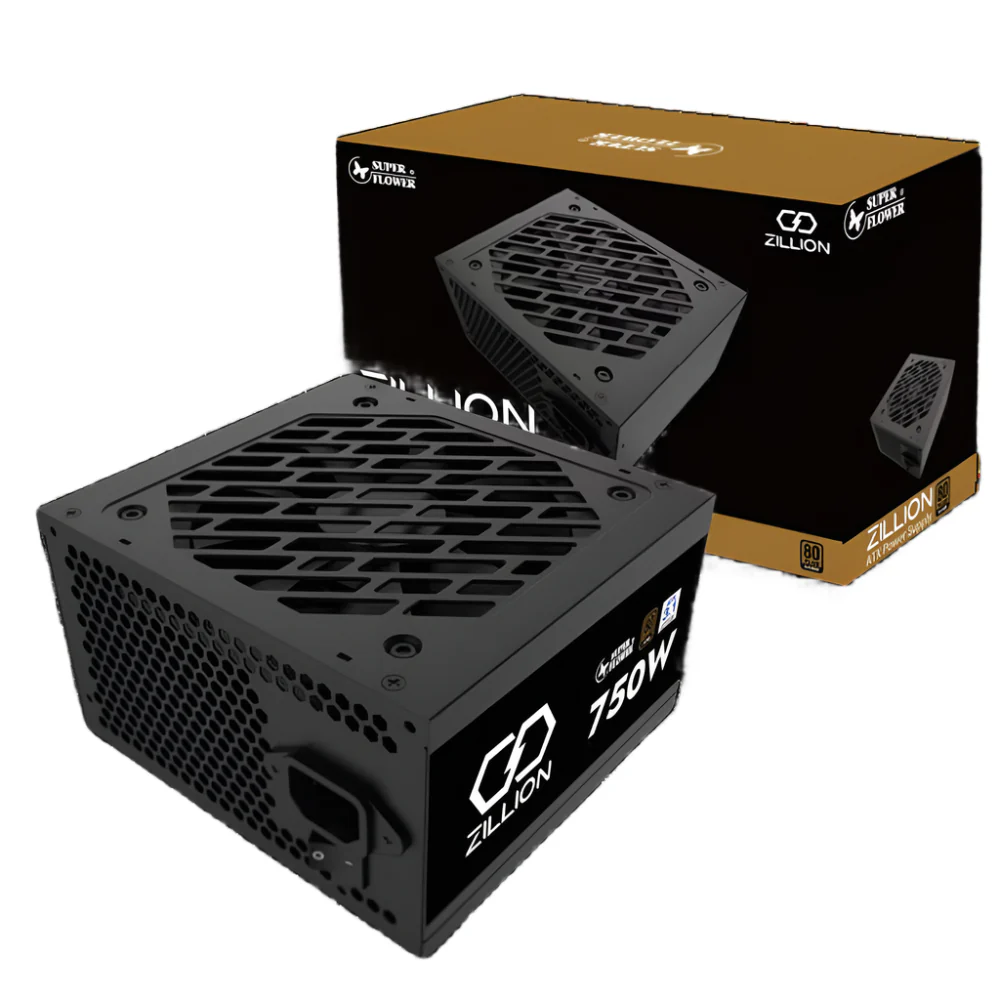

Features of SUPER FLOWER Zillion DB 750W 80 plus Bronze Non-Modular  ATX 3.1 Power Supply ( 750W )



EXCELLENT ADAPTABILITY

Support All Intel/ AMD Multi-Core CPU & ATX/ BTX Compatible Motherboards.

80 Plus BRONZE 230V EU

80 PLUS® Bronze Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load.

LONG LIFE SILENT FAN

The silent and efficient fan offers excellent heat dissipation performance and a quiet operating environment.

• Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
• Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
• 80 PLUS® Bronze Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load.
• Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
• PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
• OVP / OCP / OTP / SCP / OPP / NLP
• All Flat Cables.
• DC-DC Platform for higher stability.
• 105°C Taiwanese Main Capacitor.



Specifications of SUPER FLOWER Zillion DB 750W 80 plus Bronze Non-Modular  ATX 3.1 Power Supply ( 750W )



Model	Zillion DB Bronze 750W ATX3.1 ( SF-750Z12DB )
Wattage	750W
Efficiency	20%: 85% ; 50% : 88% ; 100% : 85% (115V Internal Bronze)
Intel Power Design Guide	ATX 12V v3.1, EPS 12V v2.92 Specification.
AC Input / Frequency	100V~240V | 50-60Hz
Fan Size	120mm Sleeve Fan
Dimension	140mm(L) x 150mm(W) x 86mm(H)
Protection	OVP / OCP / OTP / SCP / OPP / NLP
Safety	TÜV / CB / CE / RoHS / FCC
Weight	Around 1.5 KG
