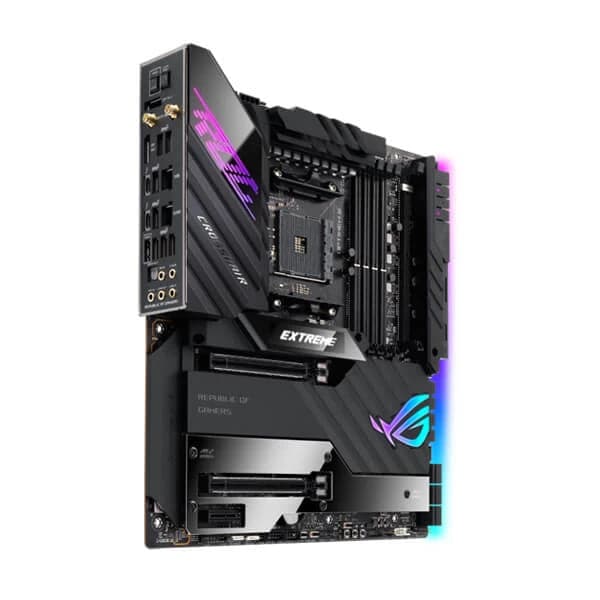

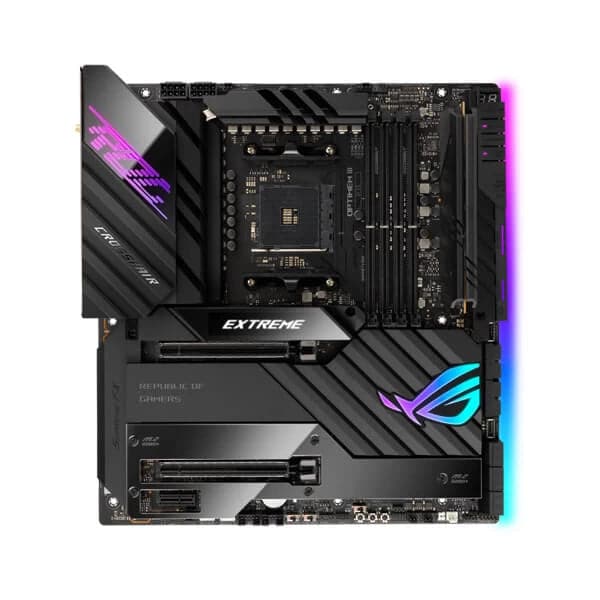

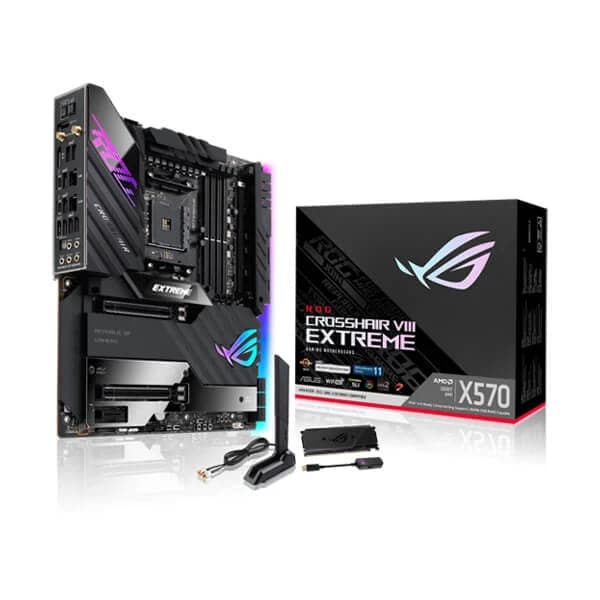

ASUS ROG Crosshair VIII Extreme DDR4 AMD Motherboard
Feature of ASUS ROG Crosshair VIII Extreme DDR4 AMD Motherboard
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Comprehensive thermal design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, five M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone.
- Robust power delivery: 18+2 power stages rated for 90 A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
- High-performance connectivity: USB 3.2 Gen 2×2 front-panel with PD3.0 60W fast charging, onboard WiFi 6E, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, and ASUS LANGuard.
- Industry-leading gaming audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC and the bundled ROG Clavis USB digital-to-analog converter for high-fidelity sound.
- Unmatched personalization: 2ʺ LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY-friendly design: Bundled ROG Fan Controller, pre-mounted I/O shield, V_Latch switch, BIOS FlashBack™, M.2 Q-Latch, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder
- Renowned software: Bundled 1-year AIDA64 Extreme subscription
PERFORMANCE
ASUS ROG Crosshair VIII Extreme DDR4 Advanced engineering and menacing power lay the foundation for the ROG Crosshair VIII Extreme to thrive where others choke. Asus ROG Crosshair VIII Extreme Wi-Fi
COOLING
Heavyweight cooling keeps onboard components and high-performance M.2 drives chilled without requiring direct airflow to deal with the thermal onslaught. Asus ROG Crosshair VIII Extreme Wi-Fi
CONNECTIVITY
Advanced connectivity features including WiFi 6E and two Ethernet ports provide all the bandwidth needed for smooth online and LAN gameplay. File transfers and load times get a boost as well, thanks to a front-panel USB 3.2 2×2 header. The header also supports PD 3.0 60-watt power delivery for charging devices. Additionally, there’s onboard SupremeFX audio for rich, premium sound. Asus ROG Crosshair VIII Extreme Wi-Fi
OPTIMIZATION
The ROG Crosshair VIII Extreme provides all the tools needed to quickly and easily optimize any system. Asus ROG Crosshair VIII Extreme Wi-Fi
Specifications of ASUS ROG Crosshair VIII Extreme DDR4 AMD Motherboard
| Socket | AM4 |
| Chipset | X570 |
| Form Factor | E-ATX |
| Voltage Regulator | 18+2 Phase (90A MOSFETs for Vcore) |
| Video Ports | (2) Thunderbolt 4 (Outputs) |
| (2) Displayport (Inputs, v1.4) | |
| USB Ports | (2) Thunderbolt 4, Type-C (40 Gbps) |
| (8) USB 3.2 Gen 2, Type-A (10 Gbps) | |
| Network Jacks | (1) 10 GbE |
| (1) 2.5 GbE | |
| Audio Jacks | (5) Analog + SPDIF |
| Legacy Ports/Jacks | ✗ |
| Other Ports/Jack | ✗ |
| PCIe x16 | (2) v4.0 (x16, x8/x8) |
| PCIe x8 | ✗ |
| PCIe x4 | ✗ |
| PCIe x1 | (1) v3.0 (x1) |
| CrossFire/SLI | Nvidia 2-Way SLI |
| DIMM slots | (4) DDR4 5000(OC), 128GB Capacity (5000 Series) |
| M.2 slots | (1) PCIe 4.0 x4 / SATA + PCIe (up to 80mm) |
| (2) PCIe 4.0 x4 / PCIe Only (up to 80mm) | |
| (2) DIMM.2 PCIe 4.0 x4 / SATA (up to 110mm) | |
| U.2 Ports | ✗ |
| SATA Ports | (6) SATA3 6 Gbps (RAID 0, 1, and 10) |
| USB Headers | (1) USB v3.2 Gen 2x2 (Type-C) |
| (1) USB v3.2 Gen 2 | |
| (2) USB v3.2 Gen 1 | |
| (2) USB v2.0 | |
| Fan/Pump Headers | (6) 4-Pin |
| RGB Headers | (3) aRGB (3-pin) |
| (1) RGB (4-pin) | |
| Legacy Interfaces | ✗ |
| Other Interfaces | FP-Audio |
| Diagnostics Panel | 2-character debug LED |
| Internal Button/Switch | V_latch, Slow Mode, Safe boot, Retry, BIOS switch, Start and Flex buttons |
| SATA Controllers | ✗ |
| Ethernet Controller(s) | Intel i225 (2.5 GbE) |
| Aquantia | |
| Wi-Fi / Bluetooth | Intel Wi-Fi 6E AX200 (ax, 2.4/5 GHz, 160 MHz) |
| USB Controllers | ASMedia 3242 |
| HD Audio Codec | Supreme FX (Realtek ALC4082) |
| DDL/DTS Connect | ✗ / DTS Sound Unbound |
| Warranty | 3 Years |
